DM330023-2
| Manufacturer | |
| Description | DSPICDEM MCHV-2 DEV SYSTEM dsPICDEM MCHV-2 Develop. System DM330023-2, Development Kit, 16 bit, dsPIC Power Management IC Development Tools dsPICDE MCHV-2 DSPICDEM, EVAL, MCH-V, MOTOR CONTROL |
| Category |
Business
| MOQ | 1 | Product | Development Boards |
| Unit Pack | 1 | Other Names | DM3300232 |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85423190 | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Core Type | dsPIC | Interface | UART |
| Voltage Rating | 90 V to 265 V | Current - Output | 0.75 A |
Mechanical
| Weight | 0.2 | ||
Product Info
| Type | Motor / Motion Controllers & Drivers | Contents | Board |
| Embedded | Yes, Other | Features | :Flexible and Cost Effective tool use with Microchip's Specialized Motor Control DSCs |
| Matchcode | DM330023-2 | Technology | 16 bit |
| Kit Contents | CD with Documentation & Software, dsPICDEM MCHV Development Board, Screw Driver, USB Cable | Main Purpose | Power Management, Motor Control |
| Card Standard | Development Kit | Accessory Type | :Motor Control Plug-in Module |
| Development Kit | EVALBOARD | Standard Leadtime | 6 weeks |
| Tool Type Feature | PIC24F, PIC24E, dsPIC33F, dsPIC33E | Primary Attributes | AC Induction (ACIM) Motors, Brushless DC (BLDC) Motors, Permanent Magnet Synchronous (PMSM) Motors |
| Utilized IC / Part | dsPIC33F | Secondary Attributes | Power Factor Corrected (PFC) |
| For Use With/Related Products | PIC24F, PIC24E, dsPIC33F, dsPIC33E | ||
Similar Parts
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
MA330027
microchip
Dual Motor Control Plug-In-Module Daughter Cards & OEM Boards dsPIC33E Dual Motor Control PIM dsPIC33E Dual Motor Control PIM MODULE PLUG-IN DSPIC33F 100TQFP PIM, MOTOR CTRL, DUAL, DSPIC33E dsPIC33EDualMotorControlPIM
AC300023
microchip
AC INDUCTION MOTOR AC, DC & Servo Motors AC Induction Motor AC Induction Motor DSPIC33F AC INDUCTION MOTOR

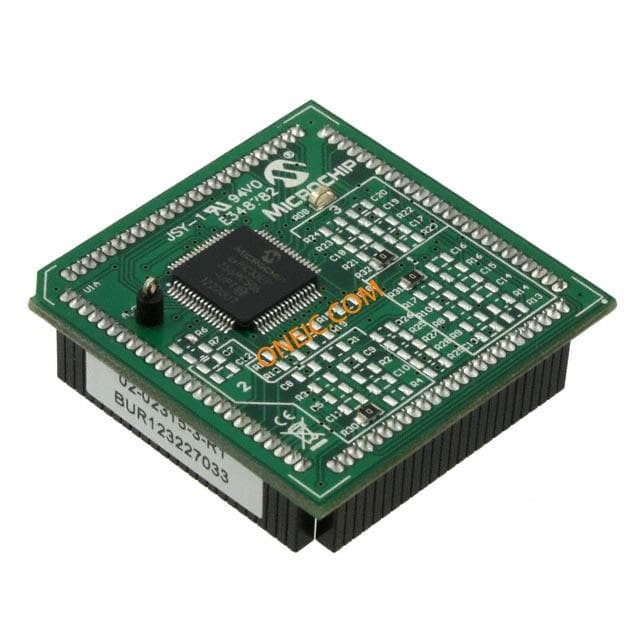

MA330031-2
