PIC16C715-20/SS
| Manufacturer | |
| Description | Order Microchip Technology PIC16C715-20/SS (PIC16C715-20/SS-ND) at . , view product specifications, and order online. |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1600 | Product | MCU |
| Tradename | PIC | Unit Pack | 67 |
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Rail / Tube |
| Factory Pack Quantity | 67 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Speed | 20 MHz | RAM Size | 128 byte |
| Core Size | 8-Bit | Core Type | PIC |
| Clock Rate | 20 MHz | Memory Size | 128 B |
| Number of I/O | 13 | Watchdog Timer | 1 |
| Data Converters | A/D 4x8b | Oscillator Type | External |
| Voltage - Supply | 5 V | Resolution (Bits) | 8 bit |
| Number of Channels | 4 | Program Memory Size | 3.5 KB |
| Program Memory Type | EPROM | Number of ADCs / DACs | 4 |
| Power Dissipation (Max) | 1000 mW | Number of Counter/Timers | 1 Timer |
| Number of Bits per Element | 8 bit | Voltage - Supply (Vcc/Vdd) | 4 V ~ 5.5 V |
Mechanical
| Width | 5.3 mm | Height | 1.75 mm |
| Length | 7.2 mm | Packaging | Tube |
| Mounting Style | SMD/SMT | Package / Case | 20SSOP |
| Supplier Device Package | 20-SSOP | Number of Cores/Bus Width | 8 Bit |
Product Info
| Series | PIC16 | On-Chip RAM | 4-chx8-bit |
| Peripherals | Brown-out Detect/Reset, POR, WDT | Manufacturer | Microchip Technology |
| Core Processor | PIC | Number of Timers | 1 |
| RF Family/Standard | PIC16 | Number of Inputs and Type | 13 I/O |
Environmental
| Operating Temperature | 0 to 70 °C | ||
Documents & Media
PDF Document
Similar Parts
AC164307
microchip
28L SSOP SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters 28L Sckt Mod for MPLAB PM3 SSOP Socket Module For MPLAB PM3 MODULE SKT FOR PM3 28SSOP AC164307, Module, 8 bit, PIC, Socket Module for MPLAB PM3 SOCKET MODULE, MPLAB PM3 PROGRAMMER 28LSSOPSOCKETMODULEFORMPLABPM3 Microchip 8 位 MCU 处理器和微控制器开发套件
$2083.7920
Details
ISPICR1
RF Solutions
ADAPTER IN-CIRCUIT PROGRAMMING
Details

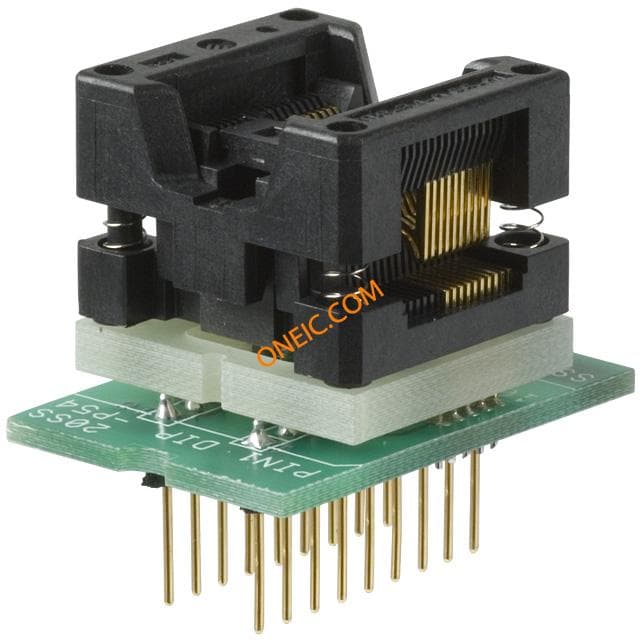

PA20SS-P54
