PIC16C67-04/L
| Manufacturer | |
| Description | Order Microchip Technology PIC16C67-04/L (PIC16C67-04/L-ND) at . , view product specifications, and order online. |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 27 |
| Other Names | PIC16C6704L | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 27 |
| Standard Package Name | PLCC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :16C67 | Leadfree Defin | RoHS-conform |
| Approval Agency | No | ||
Electrical
| Speed | 4 MHz | Memory | :112KB |
| RAM Size | 368 byte | Core Size | 8-Bit |
| Core Type | PIC | Interface | I2C/SPI/USART |
| Clock Rate | 20 MHz | Memory Size | 368 B |
| Memory Type | OTP | Number of I/O | 33 |
| Number of Bits | :8 | Voltage Rating | 4 |
| Watchdog Timer | 1 | Clock Frequency | :20MHz |
| Number of DAC's | :2 | Oscillator Type | External |
| Voltage - Supply | 5 V | Serial Interfaces | 1 |
| Program Memory Size | 14 KB | Program Memory Type | EPROM |
| Voltage - Supply (Min) | 5.5 | Power Dissipation (Max) | 1000 mW |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 6 V | ||
Mechanical
| Width | 16.59 | Weight | 0.000001 |
| Packaging | Tube | Lead Style | J-Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :44 | Package / Case | 44PLCC |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 16.59 |
| Package Quantity | PLCC | Number of Positions | 44 |
| Shell Size - Insert | 3.87 | Supplier Device Package | 44-PLCC (16.59x16.59) |
| Number of Cores/Bus Width | 8 Bit | ||
Product Info
| SPI | 1 | Series | PIC16 |
| Protocol | 1 | Matchcode | PIC16C67-04/L |
| On-Chip RAM | No | Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Architecture | RISC | Connectivity | I²C, SPI, UART/USART |
| Core Processor | PIC | Number of Timers | 3 |
| Controller Series | :PIC16C6x | Standard Leadtime | 14 weeks |
| RF Family/Standard | PIC16 | DigiKey Programmable | Yes |
| Printed Circuit Board | 44 | Microcontroller Features | :Watchdog , In-System Programming,USART,IICB,SPI,PWM,Capture/Compare,Brown Out Protection |
| Number of Inputs and Type | :11 | ||
Environmental
| Temperature Range | :Commercial | Temperature - Test | 0°C |
| Operating Temperature | 0 to 70 °C | ||
Documents & Media
PDF Document
Similar Parts
AC164309
microchip
44L PLCC SOCKET MODULE FOR MPLAB PM3 Sockets & Adapters 44L Sckt MOD for MPLAB PM3 44L PLCC Socket Modul MPLAB PM3 MODULE SKT FOR PM3 44PLCC 44LPLCCSOCKETMODULEFORMPLABPM3 Socket Module for MPLAB PM3 (PLCC 44L)
$299.7038
Details

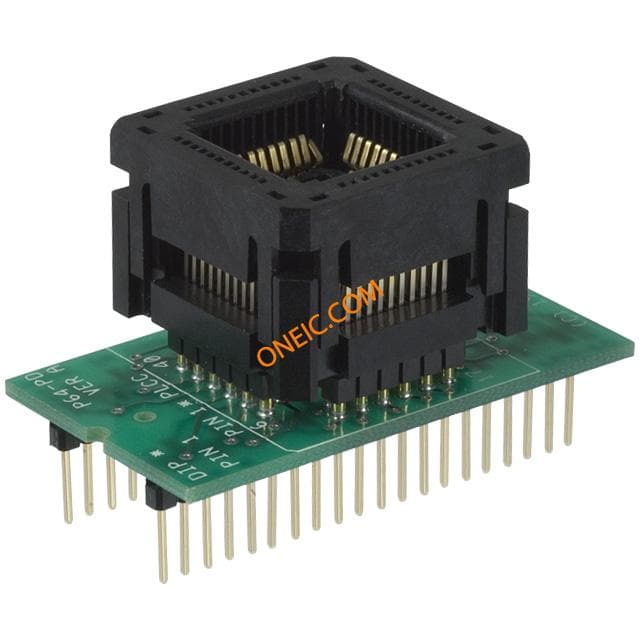

PA44-40-P64
