PIC12F683-E/MF
| Manufacturer | |
| Description | . PIC12F683-E/MF - PIC PIC® 12F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 8-DFN-S (6x5) from Microchip Technology. from now! |
| Category |
Business
| MOQ | 480 | Product | MCU |
| Tradename | PIC | Unit Pack | 60 |
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Rail / Tube |
| Factory Pack Quantity | 60 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Speed | 20 MHz | RAM Size | 128 byte |
| Core Size | 8-Bit | Core Type | PIC |
| Interface | RS-232, USB | Clock Rate | 20 MHz |
| EEPROM Size | 256 x 8 | Memory Size | 128 B |
| Memory Type | SRAM | Number of I/O | 6 |
| Watchdog Timer | 1 | Data Converters | A/D 4x10b |
| Oscillator Type | Internal | Voltage - Supply | 5 V |
| Resolution (Bits) | 10 bit | Number of Channels | 4 |
| Program Memory Size | 3.5 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 4 | Power Dissipation (Max) | 800 mW |
| Number of Counter/Timers | 3 Timer | Number of Bits per Element | 10 bit |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 5.5 V | ||
Mechanical
| Width | 6 mm | Height | 0.84 mm |
| Length | 5 mm | Packaging | Tube |
| Mounting Style | SMD/SMT | Package / Case | 8DFN-S EP |
| Supplier Device Package | 8-DFN-S (6x5) | Number of Cores/Bus Width | 8 Bit |
Product Info
| Series | PIC12 | On-Chip RAM | 4-chx10-bit |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Manufacturer | Microchip Technology |
| Core Processor | PIC | Number of Timers | 3 |
| RF Family/Standard | PIC12 | Number of Inputs and Type | 6 I/O |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Similar Parts
AC164324
microchip
MPLAB PM3 Socket Module For 8L DFN/16L QFN Sockets & Adapters 8L Socket Module 8L DFN/16L QFN Socket Module for MPL MODULE SKT FOR MPLAB 8DFN/16QFN
AC164032
microchip
Evaluation Board For Socket Adapter Supports 8Pin DFN Sockets & Adapters Adapter 8L DFN to 8L DIP ADAPTER PICSTART PLUS 8DFN/DIP
XLT08DFN
microchip
8 LD DFN TRANSITION SOCKET Sockets & Adapters 8 LD DFN Trans Sckt SOCKET TRANSITION ICE 8DFN
XLT08DFN2
microchip
One 14Lead Dip To 8Lead Dfn Transition Socket With Cable Sockets & Adapters Transition Socket SOCKET TRANSITION ICE 14DIP/8DFN
AC162058
microchip
Header Board To Be Used With MPLAB ICD 2 This Device Is Mounted On The Top Of A Header And Its Signals Sockets & Adapters HD Interface 12F683 MPLAB ICD Header Interface for PIC12 HEADER MPLAB ICD2 FOR PIC12F683 MPLAB ICD HEADER, FOR PIC12F683 Headers,MPLABICD2HeaderInterfaceforPIC12F683-DevopmentKits Adapter: debug header; PIC12F683 Microchip 8 位 MCU 针座 微控制器开发套件
AC124001
microchip
PIC12C50X, 50XA, 51X, 67X, Sockets & Adapters PRO MATE II Sckt MOD MODULE SKT PROMATEII 8DIP/SOIC

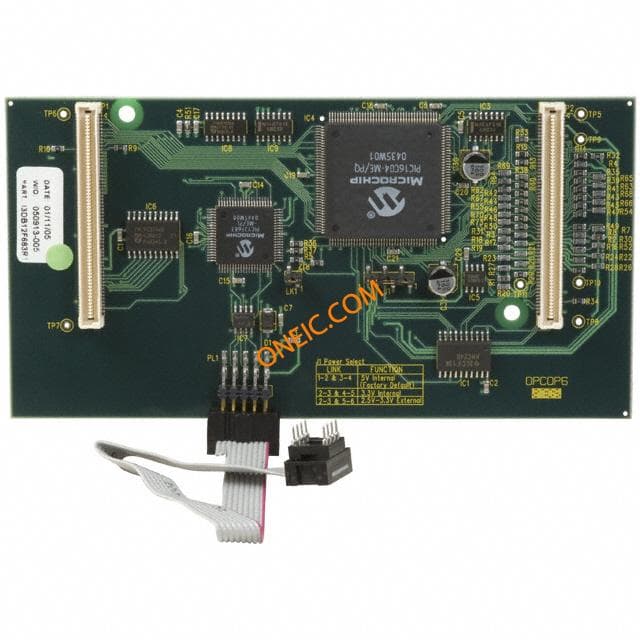

I3-DB12F683
