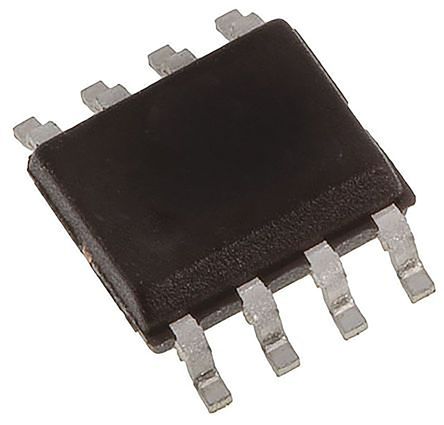

MCP6V02-E/SN
| Manufacturer | |
| Description | . MCP6V02-E/SN - Zero-Drift Amplifier 2 Circuit Rail-to-Rail 8-SOIC from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 200 | Unit Pack | 100 |
| Other Names | MCP6V02ESN | Product Category | Operational Amplifiers - Op Amps |
| Standard Package | Rail / Tube | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Gain | 145dB | PSRR | 130 dB |
| Noise | 45nV/rtHz | Voltage | 2.5μVP-P |
| Channels | 2 | Slew Rate | 0.5@5.5V V/us |
| Output Type | Rail-to-Rail | Offset Drift | 0.05µV/°C |
| Power - Input | Single | Rise Time (Typ) | 500mV/μs |
| Transistor Type | :Wideband | CMRR, PSRR (Typ) | 130 dB |
| Current - Output | 7mA | Voltage - Supply | 1.8 V |
| Number of Outputs | 2 | Number of Channels | 2 |
| Number of Elements | 2 | Voltage - Output 4 | 1785mV |
| Current - Input Bias | 1pA | Noise - 0.1Hz to 10Hz | 45nV/sqrtHz |
| Number of ADCs / DACs | :2 | Voltage - Input (Min) | 1.8V |
| Gain Bandwidth Product | 1.3 MHz | Rail-to-Rail Operation | Rail to Rail Input/Output |
| Input Logic Level - Low | 600pA | Current - Quiescent (Iq) | 400µA |
| Current - Input Bias (Max) | 0.000001(Typ)@5.5V uA | Current - Output / Channel | 22mA |
| Input Noise Current Density | 0.0006@5.5V pA/rtHz | Input Noise Voltage Density | 120@5.5V nV/rtHz |
| Voltage - Supply Span (Typ) | Not Required V | Current Rating (Per Contact) | 300µA |
| Frequency Bands (Low / High) | 1.3MHz | Resistor - Emitter Base (R2) | yes |
| Voltage - Input Offset (Max) | 0.002@5.5V mV | Voltage - Output (Typ) @ Distance | 145dB |
| Propagation Delay tpLH / tpHL (Max) | 0.5V/μs | Common Mode Transient Immunity (Min) | 106dB |
| Voltage - Output Difference (Typ) @ Distance | 156 dB | ||
Mechanical
| Weight | 0.0001 | Bandwidth | :1.3MHz |
| Footprint | 29.4mm² | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC N |
| Package Cooled | SOIC N | Material Finish | :MSL 1 - Unlimited |
| Top Termination | 125°C | Package Quantity | 50 |
| Number of Positions | 8 | Minimum Working Height | -40°C |
| Supplier Device Package | 8-SOIC N | ||
Product Info
| Spg | 50 | Type | General Purpose Amplifier |
| Shutdown | No Shutdown | Base Unit | :6 |
| Matchcode | MCP6V02-E/SN | Technology | AutoZero |
| Amplifier Type | Chopper (Zero-Drift) | Number of Units | 1 |
| Standard Leadtime | 14 weeks | Number of Circuits | 2 |
Environmental
| Operating Temperature | -40 to 125 °C | Usable Temperature Range | -40to+125°C |
| Operating Temperature - Junction | +125°C | ||
