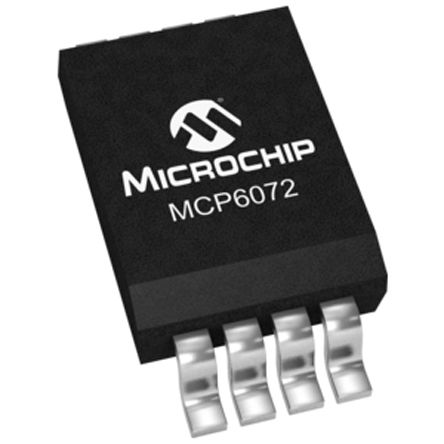

MCP6072-E/SN
| Manufacturer | |
| Description | . MCP6072-E/SN - Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail 8-SOIC from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MCP6072ESN | Product Category | Operational Amplifiers - Op Amps |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Gain | 115 dB | PSRR | 70 dB |
| Slew Rate | 0.5@6V V/us | Output Type | CMOS|Rail to Rail |
| Power - Input | Single | Rise Time (Typ) | 500mV/μs |
| Transistor Type | :Precision | CMRR, PSRR (Typ) | 72 dB |
| Current - Output | 28 mA | Voltage - Supply | 1.8 V |
| Number of Outputs | 2 | Power Supply Type | Single |
| Number of Channels | 2 | Number of Elements | 2 |
| Current - Input Bias | 1pA | Number of ADCs / DACs | :2 |
| Voltage - Input (Min) | 150 uV | Gain Bandwidth Product | 1.2 MHz |
| Rail-to-Rail Operation | Rail to Rail Input/Output | Current - Quiescent (Iq) | 170µA |
| Current - Input Bias (Max) | 0.0001@6V uA | Current - Output / Channel | 28mA |
| Input Offset Current (Max) | 0.000001(Typ)@6V | Input Noise Current Density | 0.0006@6V pA/rtHz |
| Input Noise Voltage Density | 19@6V nV/rtHz | Voltage - Supply Span (Typ) | Not Required V |
| Frequency Bands (Low / High) | 1.2MHz | Voltage - Input Offset (Max) | 0.15@6V mV |
| Common Mode Transient Immunity (Min) | 72 dB | Voltage - Output Difference (Typ) @ Distance | 115 dB |
Mechanical
| Width | 3.9 | Weight | 0.0001 |
| Bandwidth | :1.2MHz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC N | Package Cooled | SOIC N |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 4.9 |
| Package Quantity | SOIC N | Number of Positions | 8 |
| Shell Size - Insert | 1.25(Min) | Supplier Device Package | 8-SOIC N |
Product Info
| Spg | 50 | Type | General Purpose Amplifier |
| Features | rail-to-rail | Shutdown | No |
| Base Unit | :6072 | Technology | CMOS |
| Manufacturer | Precision Amplifier | Amplifier Type | Precision Amplifier |
| Number of Units | 1 | Number of Circuits | 2 |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
