MCP3909-I/SS
| Manufacturer | |
| Description | . MCP3909-I/SS - Single Phase Meter IC 24-SSOP from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2100 | Product | Current Monitors |
| Unit Pack | 59 | Other Names | MCP3909ISS |
| Product Category | Current & Power Monitors & Regulators | Standard Package | Rail / Tube |
| Factory Pack Quantity | 59 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Rad Hardened | No |
Electrical
| Resolution | 16 bit | Voltage Rating | 4.5 V |
| Input Impedance | 390 kOhm | Current - Output | 2.3mA |
| Voltage - Supply | 4.5 V ~ 5.5 V | Measurement Error | 0.1% |
| Voltage - I/O Low | 0.85V | Voltage - I/O High | 2.4V |
| Voltage - Input (Min) | 2.2 V to 2.6 V | Voltage - Supply (Min) | 5.5 V |
Mechanical
| Width | 5.38mm | Height | 1.78mm |
| Length | 8.33mm | Weight | 0.00033 |
| Packaging | Tube | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :24 | Package / Case | 24SSOP |
| Package Cooled | SSOP | Material Finish | :MSL 1 - Unlimited |
| Size / Dimension | 8.33 x 5.38 x 1.78mm | Number of Positions | 24 |
| Supplier Device Package | 24-SSOP | ||
Product Info
| Features | :Active Power Pulse Output, Ultra Low Drift | Function | :Three Phase Energy Metering IC |
| Base Unit | :3909 | Meter Type | Single Phase |
Environmental
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
Documents & Media
PDF Document
Online Document
Online Document
PDF Document
PDF Document
Similar Parts
MCP3909RD-3PH1
microchip
MCP3909 3-PHASE ENERGY METER R Power Management IC Development Tools 3-Phase Energy Meter Ref Design REF DESIGN MCP3909 3PH ENGY MTR
Details
MCP3909EV-MCU16
microchip

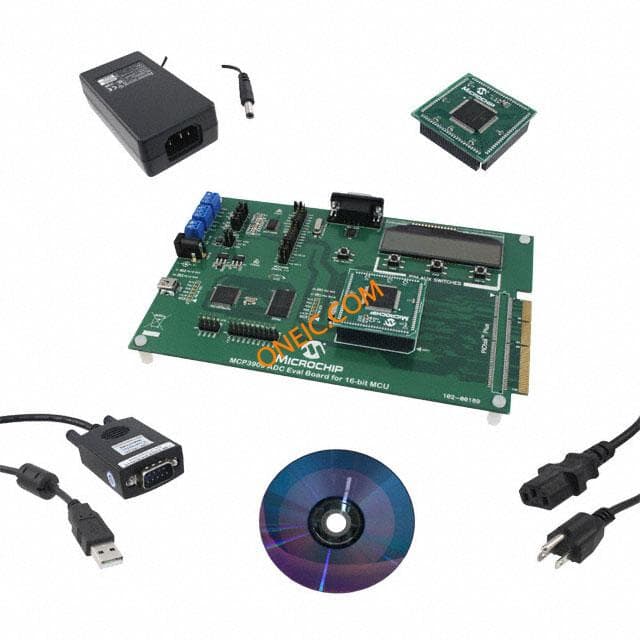

ADC Evaluation Board For 16-Bit MCUs System Data Conversion IC Development Tools MCP3909 Eval Board for 16-bit MCU EVALUATION BOARD FOR MCP3909 MCP3909EV-MCU16, Development Kit, CD with Software, Evaluation Board for MCP3909 (16-Bit MCU) PIC24F, MCP3909, ADC, EVAL BOARD ADCEvalBoardfor16-bitMCU Microchip 模拟开发套件
