MCP1631HVT-330E/SS
| Manufacturer | |
| Description | . MCP1631HVT-330E/SS - Sepic Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 20-SSOP from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2500 | Product | Voltage Controllers |
| Unit Pack | 1600 | Other Names | MCP1631HVT-330E/SSTR |
| Product Category | Switching Converters, Regulators & Controllers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1600 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| PWM Type | Current Mode | Fall Time | 2.7 ns |
| Duty Cycle | 10% | Cuk Converter | No |
| Buck Converter | Yes | Isolated Power | Yes |
| Voltage Rating | 3.3 V | Boost Converter | No |
| Frequency - Max | 2MHz | Rise Time (Typ) | 2.5 ns |
| Current - Output | 250(Min) mA | Voltage - Supply | 3.5 V ~ 16 V |
| Doubler Converter | No | Flyback Converter | No |
| Number of Outputs | 1 | Divider/Multiplier | No |
| Inverting Converter | No | Frequency - Switching | 2000 kHz |
| Number of Outputs and Type | 1 | ||
Mechanical
| Packaging | Reel | Contact Form | Yes |
| Mounting Type | Surface Mount | Package / Case | 20SSOP |
Product Info
| Type | Current Mode PWM Controllers | Series | MCP1631 |
| Manufacturer | Microchip Technology | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
PDF Document
PDF Document
Online Document
Online Document
Online Document
Online Document
PDF Document
Similar Parts
MCP1631RD-MCC2
microchip
MCP1631HV MULTI-CHEMISTRY BUCK Evalbaord MCP1631 SO-20 SMD REFERENCE DESIGN MCP1631HV Power Management IC Development Tools MCP1631HV Multi-Chem BuckBst Chg Ref Dsgn
$457.7570
Details

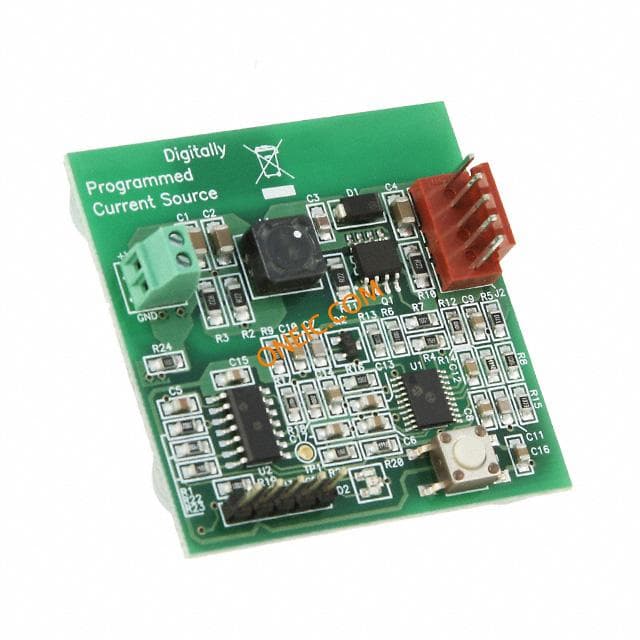

MCP1631RD-DCPC1
microchip
Development Kit For Mcp1631Hv Digitally Controlled Programmable Current Source Power Management IC Development Tools MCP1631HV Reference Design MCP1631HV Digitally Controlled Progr REF DES BATT CHARG OR LED DRIVER MCP1631HV Current Source Ref Design MCP1631, CURRENT SOURCE, REF DESIGN MCP1631HVREFDESIGN MCP1631HV Digitally Controlled Programmable Current Source Reference Design
$516.2533
Details
