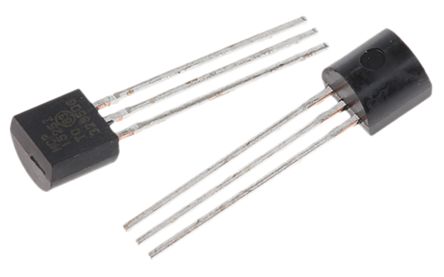

MCP1525-I/TO
| Manufacturer | |
| Description | . MCP1525-I/TO - Series Voltage Reference IC Fixed 2.5V V ±1% 2 mA TO-92-3 from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Product | Voltage References |
| Unit Pack | 1000 | Product Category | Voltage References |
| Standard Package | Rail / Tube | Factory Pack Quantity | 1000 |
| Standard Package Name | TO-92 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Tolerance | ±1% | Reference Type | Precision |
| Voltage Rating | 2.5 V | Line Regulation | 350 uV/V |
| Load Regulation | 1.3 mV/mA | Current - Output | 8(Typ) mA |
| Voltage - Supply | :1.0% | Voltage Reference | :2.5V |
| Number of Channels | 1 | Contact Voltage (Max) | 5.5 V |
| Noise - 0.1Hz to 10Hz | 90μVp-p | Voltage - Input (Min) | 2.5V |
| Voltage - Output (Max) | 2.5 V | Power Dissipation (Max) | :140mW |
| Regulator Current (Max) | 100 uA | Current - Quiescent (Iq) | 100µA |
| Voltage Regulation - Line | 107μV/V | Current - Output / Channel | 8 mA |
| Accuracy - Highest (Lowest) | 1 % | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Continuous Operating (Max) (MCOV) | :5.5V | ||
Mechanical
| Width | 3.62mm | Height | 4.62mm |
| Length | 4.71mm | Weight | 0.0002 |
| Packaging | Bag | Lead Style | Through Hole |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :3 |
| Package / Case | 3TO-92 | Package Cooled | TO-92 |
| Material Finish | :- | Package Quantity | TO-92 |
| Size / Dimension | 4.71 x 3.62 x 4.62mm | Number of Positions | 3 |
| Supplier Device Package | TO-92-3 | ||
Product Info
| Spg | 200 | Type | VoltageReference |
| Topology | Series | Base Unit | :1525 |
| Diode Type | :Voltage Reference | Channel Type | N-Channel |
| Programmable | Precision | Number of Units | 1 |
Environmental
| Operating Temperature | -40 to 85 °C | Temperature Coefficient | 50 ppm/°C |
| Usable Temperature Range | -40to+85°C | Thermal Resistance @ Natural | 132°C/W |
| Temperature Coefficient (Typ) | 50 PPM / C | Operating Temperature - Junction | +85°C |
