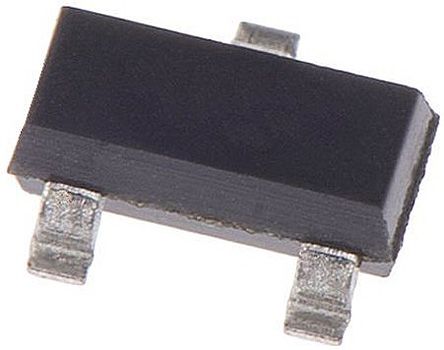

MCP112T-300E/TT
| Manufacturer | |
| Description | . MCP112T-300E/TT - Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3 from Microchip Technology. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Unit Pack | 3000 |
| Other Names | MCP112T-300E/TTDKR | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Reset | No | Output | Active Low/Push-Pull |
| Delay Time | :90µs | Reset Time | 130ms |
| Voltage Rating | 1 V | Watchdog Timer | No |
| Current - Output | :1µA | Current - Supply | 1.75 uA |
| Voltage - Supply | 5.5 V | Voltage - Clamping | 2.974 V |
| Voltage - Threshold | 2.93V | Voltage - Input (Min) | 2.886 V |
| Voltage - Supply (Min) | 5.5 V | Power - Minimum Receivable | Yes |
| Number of Voltages Monitored | 1 | Common Mode Transient Immunity (Min) | Extended |
| Voltage - Protection Level (VP) (2416) | 3.003V | ||
Mechanical
| Width | 1.4mm | Height | 1.02mm |
| Length | 3.04mm | Weight | 0.0002 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :3 | Package / Case | 3SOT-23 |
| Package Cooled | SOT-23B | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | SOT-23 | Size / Dimension | 3.04 x 1.4 x 1.02mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 |
Product Info
| Type | Voltage Detector | Base Unit | :112 |
| DigiKey Programmable | Yes | Number of Supervisors | 1 |
| Number of Logic Elements/Cells | :1 | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
