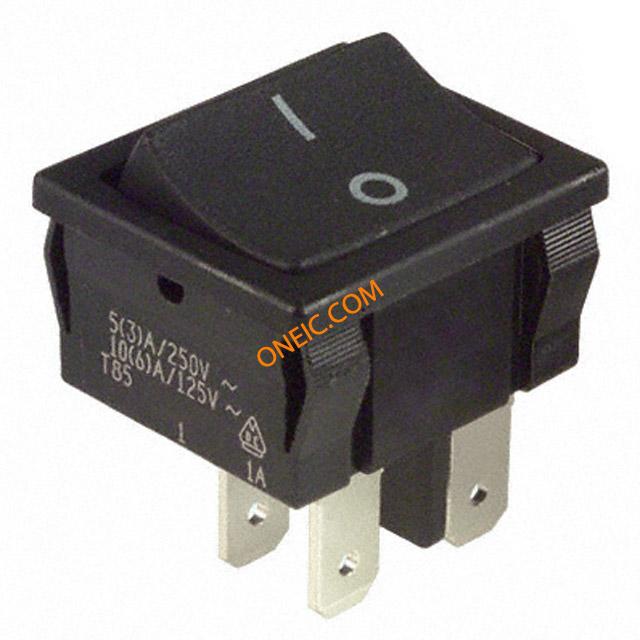

D602J12S215PQF
| Manufacturer | |
| Description | Switch Rocker ON None OFF DPST Quick Connect Curved Rocker 10A 250VAC Rocker SWITCH ROCKER DPST 10A 125V Rocker Switches DPST ON-OFF ROCKER Switch,Rocker;MiniaturePower;DSeries-10Amp@125VAC;DPST;On-None-Off |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Lead Time | 56 Days |
| Unit Pack | 1 | Subcategory | Switch Rocker |
| Product Category | Rocker Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULRecognized,CSACertified,VDEApproved | ||
Electrical
| Circuit | DPST | Operation | OnNoneOff |
| Voltage Rating | 125V | Number of Poles | 2 |
| Switch Function | On-Off | Voltage - Rated AC | 125V |
| Dielectric Strength | 1000V | Current Rating (Max) | 10@125VAC@(CSA/UL/VDE) A |
| Insulation Resistance | 10^9Ohms(Min.) | Voltage - Input (Min) | 250@(CSA/UL/VDE) V |
| Switch Function/Rating | ON None OFF | Contact Rating @ Voltage | 10 A at 125 V |
Mechanical
| Depth | 23.85 | Height | 25.89 |
| Packaging | Bulk | Body Finish | Miniature |
| Termination | QCTabs | Contact Form | DPST |
| Actuator Type | Rocker | Cable Opening | Rectangular - 22.53mm x 19.20mm |
| Mounting Type | Panel Mount | Terminal Type | Quick Connect |
| Contact Finish | Silver | Mounting Style | Panel |
| Contact Material | Coin Silver | Length - Overall | 20.83 |
| Actuator Material | Nylon 6/6 | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Actuator Style/Size | Curved Rocker | Number of Positions | 3 |
| Color - Actuator/Cap | Black | Mounting Hole Diameter | 0.754x0.587In. |
| Switch Actuation Level | DPST | Panel Cutout Dimensions | Rectangular - 22.53mm x 19.20mm |
| Material - Housing & Prism | N/A/Nylon 6/6 | ||
Product Info
| Type | Rocker | Series | D6 |
| Circuit Type | DPST | Manufacturer | DSeries |
| Electrical Life | 10,000 Cycles | Actuator Marking | O - |
| Output Configuration | Panel Mount, Snap-In | Application Specifics | Computers,vacuumcleaners,coffeemakers. |
Environmental
| Operational Life | 10000MakeandBreakCyclesatFullLoad | Operating Temperature | -30 to 65 °C |
