APT50GF120LRG
| Manufacturer | |
| Description | Trans IGBT Chip N-CH 1.2KV 135A 3-Pin(3+Tab) TO-264 IGBT 1200V 135A 781W TO264 IGBT Modules Insulated Gate Bipolar Transistor - NPT Low Frequency - Single |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | IGBT Silicon Carbide Modules | Standard Package | Rail / Tube |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| IGBT Type | NPT | Vgs (Max) | ±30 V |
| Input Type | Standard | Gate Charge | 340nC |
| Power - Max | 781W | Switching Energy | 3.6mJ (on), 2.64mJ (off) |
| Voltage - Supply | 1200V | Td (on/off) @ 25degC | 25ns/260ns |
| Vce Saturation (Max) | 2.5 V | Voltage - Input (Min) | 1200 V |
| Power - Average Forward | 781 W | Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 50A |
| Gate Charge (Qg) (Max) @ Vgs | +/- 100 nA | Current - Collector (Ic) (Max) | 135A |
| Current - Collector Cutoff (Max) | 135 A | Current - Collector Pulsed (Icm) | 150A |
| Current - Continuous Drain (Id) @ 25degC | 135 A | ||
Mechanical
| Packaging | Tube | Mounting Type | Through Hole |

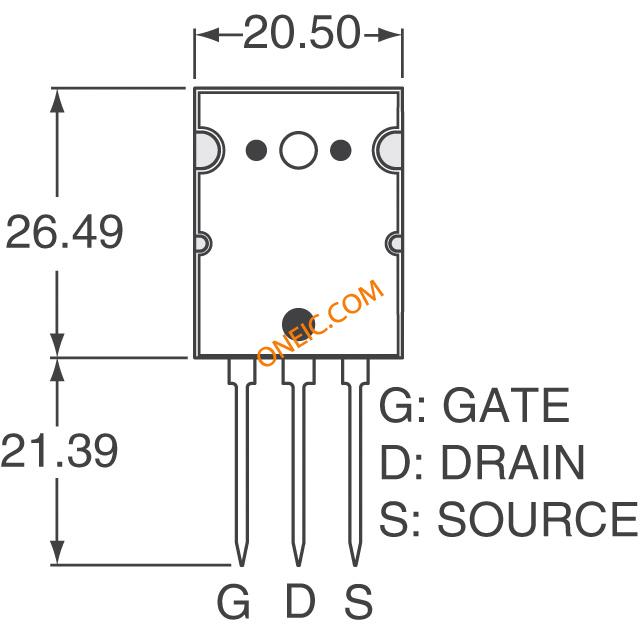

| Mounting Style | Through Hole | Package / Case | 3TO-264 |
| Supplier Device Package | TO-264 [L] | ||
Product Info
| Manufacturer | Microsemi | Configuration | Single |
Environmental
| Test Condition | 800V, 50A, 1 Ohm, 15V | Operating Temperature | - 55 C |
