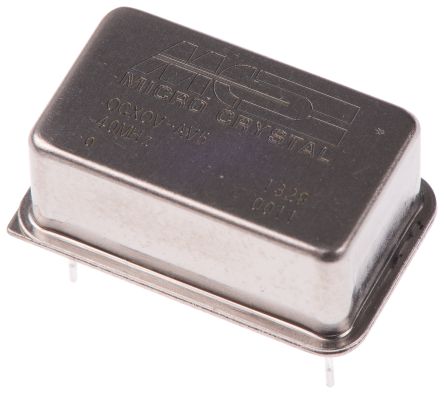

OCXOV-AV5-40.000
| Manufacturer | |
| Description | OCXOV-AV5-40.000, Crystal Oscillator, 40MHz, ±0.2ppm HCMOS, 4-Pin DIL-14, 20.14 x 12.52 x 7.8mm OCXOTHT5V40.000MHzDIP14 Micro Crystal 40 MHz 晶体振荡器, ±0.2ppm, HCMOS输出, 14针 PDIP封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Symmetry | 40/60% | Output Signal | HCMOS |
| Voltage Rating | 4.8 V | Voltage - Supply | 4.8 V |
| Frequency Stability | ±0.2ppm | Frequency Tolerance | ±0.7 ppm/yr |
| Frequency - Output 1 | 40 MHz | Voltage - Supply (Min) | 5.2 V |
| Max Propagation Delay @ V, Max CL | 40/60% | ||
Mechanical
| Width | 12.52mm | Height | 7.8mm |
| Length | 20.14mm | Mounting Type | Through Hole |
| Number of Pins | 14 | Package Cooled | DIL-14 |
| Package Quantity | DIP | Size / Dimension | 20.14 x 12.52 x 7.8mm |
| Number of Positions | 4 | ||
Product Info
| Function | Y | ||
Environmental
| Operating Temperature | +60 °C | ||
