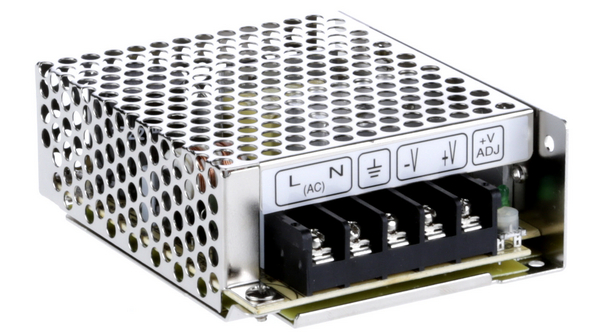

RS-35-24
| Manufacturer | |
| Description | Linear and Switching Power Supplies 36W 24V 1.5A AC/DC Power Supply Single-OUT 24V 1.5A 36W 5-Pin Power Supply; AC-DC; 24V@1.5A; 88-264V In; Enclosed; Panel Mount; Switching; RS Series Pwr sup.unit: pulse; 36W; 24VDC; 1.5A; 88÷264VAC; 125÷373VDC; 300g RS-35-24 from Mean Well, 35 Watt, Single Output Switched-mode power supply 1 output, RS-35-24, Mean Well |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Product Category | Linear and Switching Power Supplies |
| Factory Pack Quantity | 45 | ||
Compliance
| RoHS | RoHS Compliant | Protection | overload, voltage growth, short-circuit |
Electrical
| Output | 24VDC@1.5A | Derating | 2.5% / °C from 50 °C |
| Frequency | 47...63 Hz | Operation | Switching |
| Efficiency | 88.00% | Output Power | 36 W |
| Power - Rated | 36W | Power - Output | 35 W |
| Voltage Rating | 88 VAC to 264 VAC, 125 VDC to 373 VDC | Power - Cooling | 35 Watts |
| Current - Output | 1.5A | Voltage - Supply | 88...264V AC, 125...373V DC |
| Number of Outputs | 1 | Power Supply Type | modular |
| AC Voltage - Input | 88...264 VAC | Current - Output 1 | 1.5 A |
| Voltage - Input (Min) | 24 VDC | Voltage - Supply, Battery | 125...373 VDC |
| Current - Output / Channel | 1.5 A | ||
Mechanical
| Size | 99 x 82 x 35 mm | Width | 82 mm |
| Height | 36 mm | Length | 99 mm |
| Weight | 300g | Size - Body | 99 x 82 x 36mm |
| Mounting Type | Panel | Mounting Style | Chassis |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 99 mm L x 82 mm W | ||
Product Info
| Type | Commercial | Series | MEAN WELLRS-35 |
| Features | Three Year Warranty | Manufacturer | RS Series |
| Stock Status | 191 | Configuration | Enclosed |
| Electrical Life | terminal block | Number of Units | 1 |
| Associated Items | DRL-01, DRP-03A | ||
Environmental
| Operating Temperature | -25...70°C | ||
