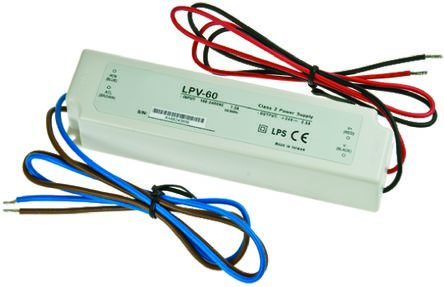

LPV-60-24
| Manufacturer | |
| Description | LED Drivers Power Supplies 60W 24V 2.5A AC/DC Power Supply Single-OUT 24V 2.5A 60W 4-Pin LED DRIVER, AC-DC, CV, 2.5A, 24V Power Supply; AC-DC; 24V@2.5A; 100-264VIn; Sealed; Panel Mount; LED Driver; LPV Series Pwr sup.unit: pulse; for LED diodes; 60W; 24VDC; 2.5A; 90÷264VAC LPV-60-24 from Mean Well, 60 Watt, Single Output LED driver, LPV-60-24, Mean Well Mean Well LED 驱动器 , 24V, 2.5A, 60W |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Lead Time | 70 Days |
| Subcategory | AC to DC Power Supply | Product Category | LED Drivers Power Supplies |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044090 |
| Protection | overload, voltage growth, short-circuit | ||
Electrical
| Input | 90-264VAC | Output | 24VDC@2.5A |
| Dimming | :PWM | Frequency | 47 to 63 |
| Operation | Switching | Efficiency | :86% |
| Output Type | :Adjustable, Fixed | Power - Max | :60W |
| Range deg/s | :MEAN WELL - LPV-60 Series | Output Power | 60 W |
| Power (Watts) | 60 W | Power - Input | :Chassis |
| Power - Rated | 60W | Operating Mode | Constant Voltage (CV) |
| Power - Output | 60 W | Voltage Rating | 90 VAC to 264 VAC, 127 VDC to 370 VDC |
| Current - Output | :2.5A | Voltage - Supply | 90...264V AC |
| Number of Outputs | 1 | Power Supply Type | pulse |
| Current - Output 1 | 2.50 A | Number of Channels | :1 |
| LED Driver Channels | :Constant Voltage | Voltage - Isolation | 3000VAC |
| Voltage - Input (Min) | 24 VDC | Voltage - Output (Max) | :24V |
| Current - Output / Channel | 2.5 A | Voltage - Continuous Operating (Max) (MCOV) | :264V |
Mechanical
| Depth | :32mm | Width | :42.5mm |
| Height | :32mm | Length | :162.5mm |
| Weight | 0.4 | Size - Body | 42.5 x 162.5 x 32mm |
| Mounting Type | Screw | Mounting Style | Chassis |
| Length - Overall | 162.5 | Package Quantity | PLASTIC6.40 x 1.67 x 1.26" |
| Primary Material | AC-DC | Size / Dimension | 162.5 mm L x 42.5 mm W x 32 mm H |
| Termination Style | :Flying Leads | Number of Positions | 4 |
| Shell Size - Insert | 32 | ||
Product Info
| Type | Switching | Style | Enclosed |
| Series | LPV-60 | Features | 2-Years Warranty, High Reliability, Constant Voltage Design, 100% Full Load Burn-In Test, Short Circuit and Overload and Over Voltage Protections |
| Application | Commercial | Manufacturer | LPV Series |
| Stock Status | 122 | Configuration | Sealed |
| Electrical Life | 600mm wires | Number of Units | 1 |
| Application Specifics | for LED diodes | Printed Circuit Board | 4 |
Environmental
| Ingress Protection | IP67 | Operating Temperature | :70°C |
