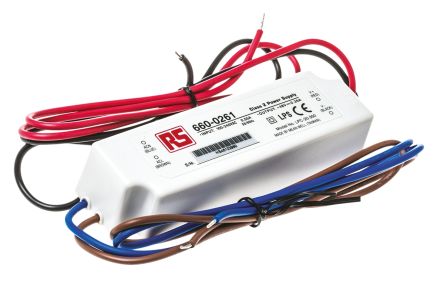

LPC-20-350
| Manufacturer | |
| Description | LED Drivers Power Supplies 16.8W 48V 350mA AC/DC Power Supply Single-OUT 3V to 48V 0.35A 16.8W 4-Pin LED DRIVER, AC-DC, CC, 0.35A, 48V Power Supply; AC-DC; 48V@0.35A; 100-264V In; Sealed; LED Driver; PFC; LPC Series Pwr sup.unit: pulse; for LED diodes; 16.8W; 9÷48VDC; 350mA; IP67 LPC-20-350 from Mean Well, 20 Watt, Single Output LED driver 350 mA, LPC-20-350, Mean Well Mean Well LED 驱动器 , 9 → 48V, 0.35A, 16.8W |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Product Category | LED Drivers Power Supplies |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85044090 | Protection | overload, voltage growth, short-circuit |
Electrical
| Input | 90-264VAC | Output | 48VDC@0.35A |
| Dimming | :PWM | Operation | Switching |
| Efficiency | :83% | Output Type | :Adjustable, Fixed |
| Power - Max | :16.8W | Range deg/s | :MEAN WELL - LPC-20 Series |
| Output Power | 6 W | Power (Watts) | 20 W |
| Power - Input | :Chassis | Power - Rated | 16.8W |
| Operating Mode | Constant Current (CC) | Power - Output | 16.8 W |
| Voltage Rating | 90 VAC to 264 VAC, 127 VDC to 370 VDC | Current - Output | :350mA |
| Voltage - Supply | 90...264V AC | Number of Outputs | 1 |
| Power Supply Type | pulse | Current - Output 1 | 0.35 A |
| Number of Channels | :1 | LED Driver Channels | :Constant Current |
| Voltage - Input (Min) | 9 VDC to 48 VDC | Voltage - Output (Max) | :48V |
| Current Regulation - Line | CC | Current - Output / Channel | 350 mA |
| Voltage - Output (Min/Fixed) | :9V | Voltage - Continuous Operating (Max) (MCOV) | :264V |
Mechanical
| Depth | :26mm | Width | :35mm |
| Height | :26mm | Length | :118mm |
| Weight | 0.22 | Size - Body | 35 x 118 x 26mm |
| Mounting Type | Panel | Mounting Style | Chassis |
| Package Quantity | PLASTIC4.64 x 1.38 x 1.02" | Primary Material | AC-DC |
| Size / Dimension | 118 mm L x 35 mm W x 26 mm H | Termination Style | :Flying Leads |
Product Info
| Type | LED Driver | Series | LPC-20 |
| Features | 2-Years Warranty, High Reliability, 100% Full Load Burn-In Test, Constant Current Design, Compact Size, Short Circuit and Over Voltage Protections | Application | Commercial |
| Manufacturer | LPC Series | Stock Status | 94 |
| Configuration | Encapsulated | Electrical Life | 600mm wires |
| Number of Units | 1 | Application Specifics | for LED diodes |
Environmental
| Ingress Protection | IP67 | Operating Temperature | :70°C |
