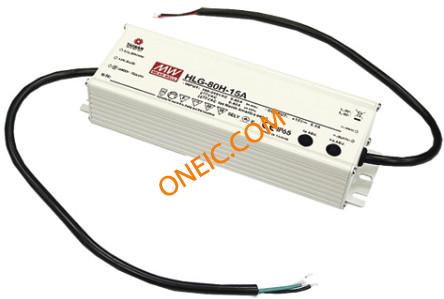

HLG-80H-36B
| Manufacturer | |
| Description | LED Power Supplies 36V 2.3A 82.8W IP67 OCP adj cable LED Drivers Power Supplies 36V 2.3A 82.8W IP67 OCP adj cable Dimmable LED Driver,36V, IP67 2.3A,80W AC/DC Power Supply Single-OUT 36V 2.3A 82.8W 7-Pin HLG-80H-36B from Mean Well, 80 Watt, Single Output LED driver, HLG-80H-36B, Mean Well |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Product Category | LED Power Supplies |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | 36.0V @ 2.30A | Dimming | 1 to 10 V dc, PWM, Resistance |
| Frequency | 47...63 Hz | Operation | Constant Voltage |
| Efficiency | 91.00% | Power - Max | 82.8W |
| Output Power | 82.8 W | Power - Rated | 82.8 |
| Operating Mode | Constant Current (CC) | Voltage Rating | 90 VAC to 305 VAC, 127 VDC to 431 VDC |
| Current - Output | 2.3A | Voltage - Supply | 90...305 VAC |
| Number of Outputs | 1 | Voltage - Input (Min) | 36 VDC |
| DC Voltage - Input (Max) | AC, DC | Current - Output / Channel | 2.3 A |
| Voltage - Protection Level (VP) (2416) | IP 67 | ||
Mechanical
| Size | 61.5 x 195.6 x 38.8 mm | Depth | 195.6 |
| Width | 61.5 | Height | 38.8 |
| Weight | 0.84 | Size - Body | 7.70 x 4.42 x 1.53" |
| Mounting Style | Chassis | Panel Mount Type | Enclosed |
| Termination Style | Cable 0.3 m | ||
Product Info
| Series | HLG-80H | Application | Commercial |
| Stock Status | 5 | Application Specifics | LED Lighting, Moving Signs |
Environmental
| Operating Temperature | -40~+70°C | ||
