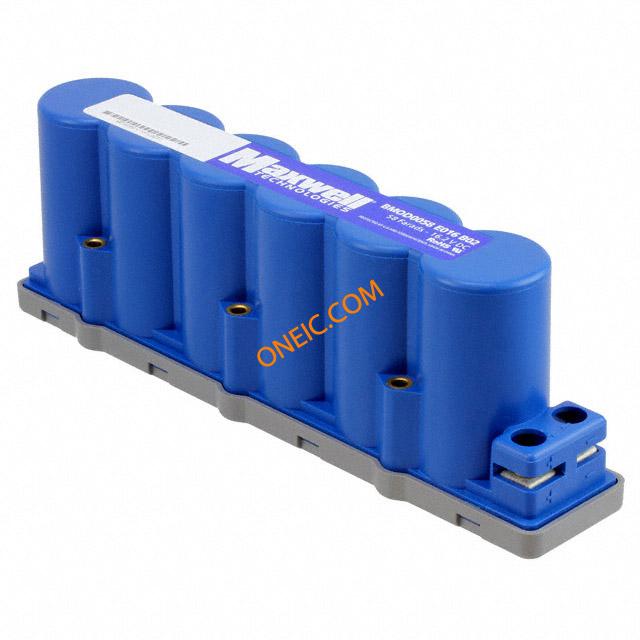

BMOD0058 E016 B02
| Manufacturer | |
| Description | Supercapacitors / Ultracapacitors 16V 58F Plastic case CAP SUPER 58F 16V SCREW Capacitor: electrolytic; supercapacitor; 58F; 16V; -40÷65°C; IP54 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Supercapacitors | Part # Aliases | 108724 |
| Product Category | Supercapacitors / Ultracapacitors | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Tolerance | 20 % | Capacitance | 58 Farads |
| Voltage Rating | 16.2 V | Current - Leakage | 25mA |
| Capacitance @ Vr, F | electrolytic | Current Rating (Max) | 20 A |
| Voltage - Supply (Min) | 16V | Current - Peak Pulse (8/20us) | 200A |
| ESR (Equivalent Series Resistance) | 22 mOhms | ||
Mechanical
| Width | 85 mm | Weight | 0.68 kg |
| Packaging | Bulk | Lead Style | M5 screws |
| Size - Body | 226.5 x 76 x 49.5mm | Package / Case | 44 mm |
| Size / Dimension | 85 mm W x 218 mm L x 44 mm H | Termination Style | Screw |
Product Info
| Series | BMOD | Number of Units | 1 |
Environmental
| Ingress Protection | IP54 | Operating Temperature | - 40 C to + 65 C |
