PT-2726PQ
| Manufacturer | |
| Description | BUZZER PIEZO 2.5KHZ 30MM PC MT TRANSDUCER; MOUNTED PIEZO; 2500 SOUND FREQ. ( HZ) 3.0-30 V ; 90 DB AT 10CM; |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 30 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 2.5kHz | Input Type | peak-peak Signal |
| Voltage Range | 30V (Max) | Operating Mode | Continuous |
| Voltage Rating | 5Vp-p | Current - Output | 1.5mA |
| Driver Circuitry | Transducer, Externally Driven | Capacitance @ Frequency | 30000pF @ 120Hz |
| Sound Pressure Level (SPL) | 90dB @ 1.5V, 10cm | ||
Mechanical
| Packaging | Bulk | Termination | PC Pins |

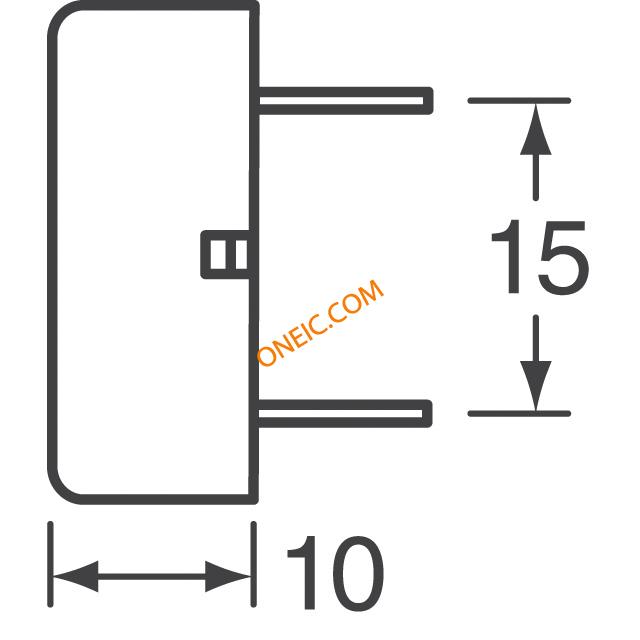

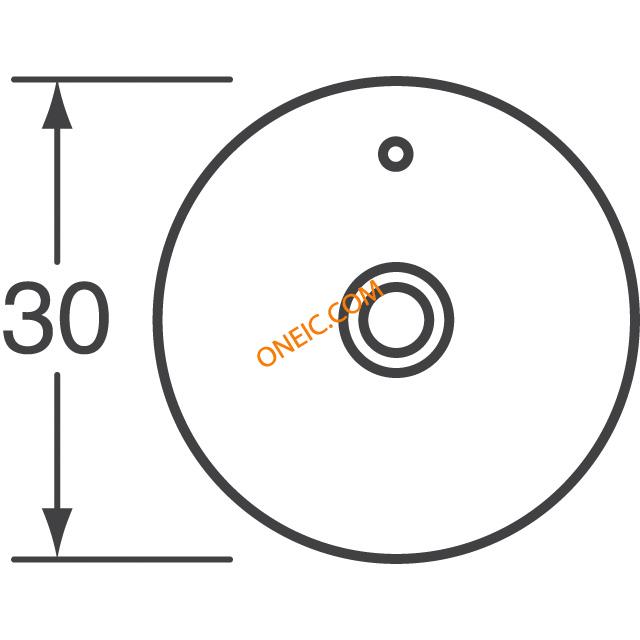

| Mounting Type | Through Hole | Size / Dimension | Circular - 30.00mm Dia x 10.20mm H |
Product Info
| Washable | No | Technology | Piezo |
Environmental
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
PDF Document
