PT-2040PQ
| Manufacturer | |
| Description | BUZZER PIEZO 4KHZ 22MM PC MT TRANSDUCER; MOUNTED PIEZO; 4000 SOUND FREQ. ( HZ) 3.0-30 V ; 90 DB AT 10CM; |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 60 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 4kHz | Input Type | peak-peak Signal |
| Voltage Range | 30V (Max) | Operating Mode | Continuous |
| Voltage Rating | 5Vp-p | Current - Output | 1.5mA |
| Driver Circuitry | Transducer, Externally Driven | Capacitance @ Frequency | 25000pF @ 120Hz |
| Sound Pressure Level (SPL) | 90dB @ 5V, 10cm | ||
Mechanical
| Packaging | Bulk | Termination | PC Pins |

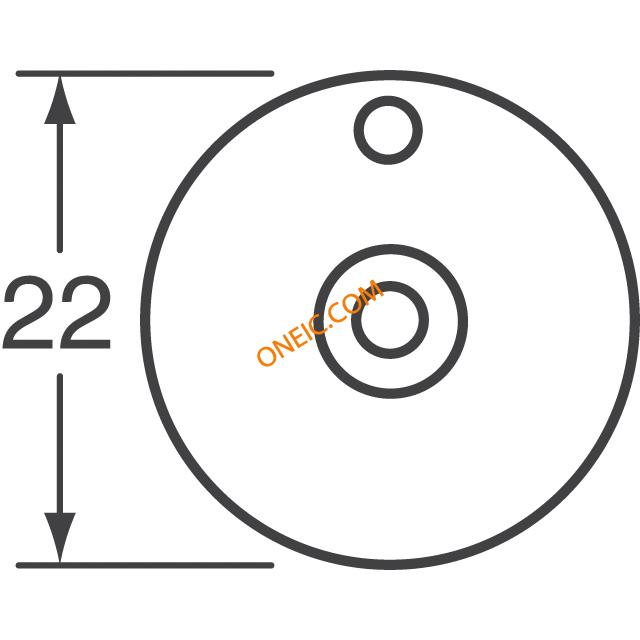

| Mounting Type | Through Hole | Size / Dimension | Circular - 22.00mm Dia x 7.20mm H |
Product Info
| Washable | No | Technology | Piezo |
Environmental
| Operating Temperature | -20°C ~ 90°C | ||
Documents & Media
PDF Document
