PS-580Q
| Manufacturer | |
| Description | BUZZER PIEZO 2.8KHZ 50MM FLANGE INDICATOR; PIEZO SIREN; 2800 SOUND FREQ. ( HZ) 5 -15 VDC; CONSTANT TONE |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 10 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 2.8kHz | Input Type | DC |
| Voltage Range | 5 ~ 15V | Operating Mode | Continuous |
| Voltage Rating | 12VDC | Current - Output | 150mA |
| Driver Circuitry | Indicator, Internally Driven | Sound Pressure Level (SPL) | 100dB @ 12V, 100cm |
Mechanical
| Packaging | Bulk | Termination | Wire Leads |

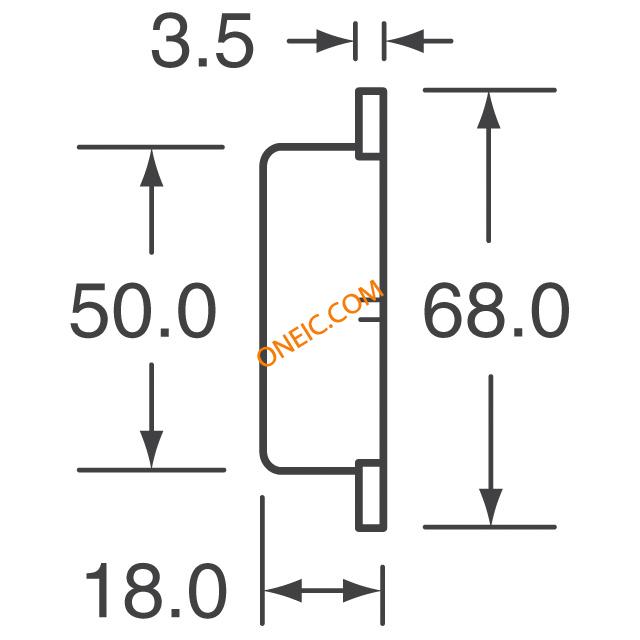

| Mounting Type | Chassis Mount | Size / Dimension | Circular - 50.50mm Dia x 18.20mm H |
Product Info
| Washable | No | Technology | Piezo |
Environmental
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
PDF Document
