PS-562Q
| Manufacturer | |
| Description | BUZZER PIEZO WARBLE 42MM FLANGE ALARM; WARBLE; 15-15 VDC; 100 DB; 2500 HZ; 50 X 16 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 10 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 2.5kHz | Input Type | DC |
| Voltage Range | 5 ~ 15V | Operating Mode | Warble, Slow |
| Voltage Rating | 12VDC | Current - Output | 40mA |
| Driver Circuitry | Indicator, Internally Driven | Sound Pressure Level (SPL) | 100dB @ 12V, 100cm |
Mechanical
| Packaging | Bulk | Termination | Wire Leads |

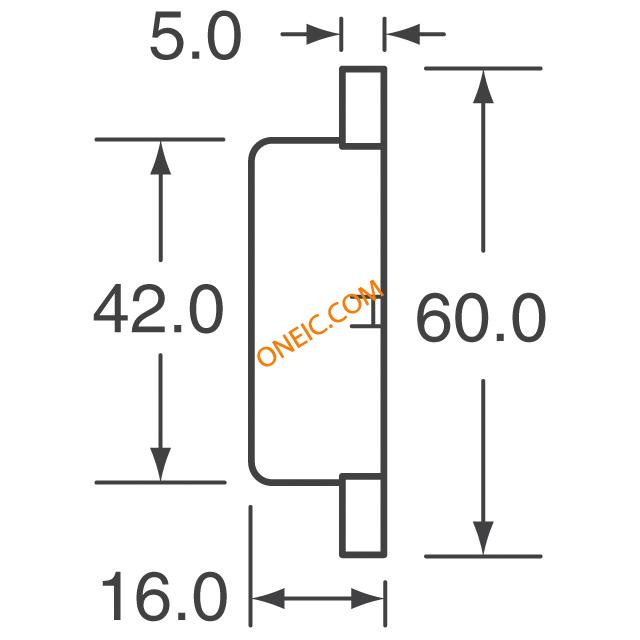

| Mounting Type | Chassis Mount | Size / Dimension | Circular - 42.00mm Dia x 16.20mm H |
Product Info
| Washable | No | Technology | Piezo |
Environmental
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
PDF Document
