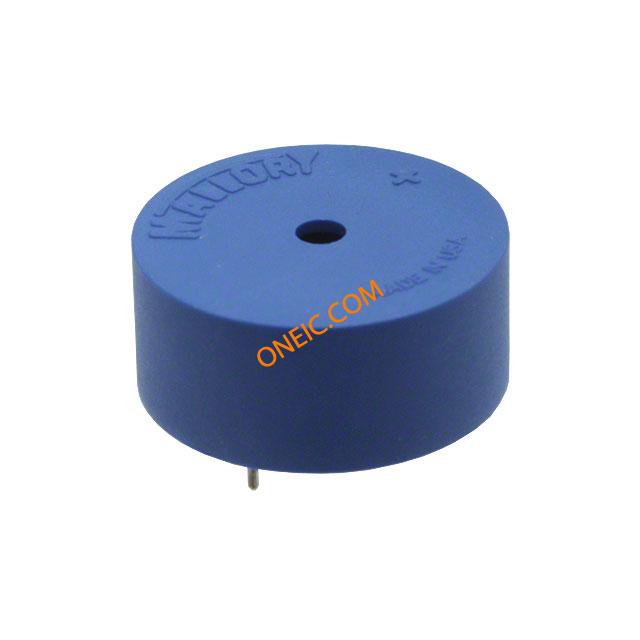

MSR320SR
| Manufacturer | |
| Description | AUD SIG DEVICE 3-20VDC PCB |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Electrical
| Frequency | 3.5kHz | Input Type | DC |
| Voltage Range | 3 ~ 20V | Operating Mode | Continuous |
| Current - Output | 3 ~ 16mA | Driver Circuitry | Indicator, Internally Driven |
| Voltage - Supply | 3 ~ 20V | Current Rating (Max) | 3 ~ 16mA |
| Sound Pressure Level (SPL) | 71dB @ 3V, 61cm | ||
Mechanical
| Size | Circular - 23.00mm Dia x 10.10mm H | Packaging | Bulk |
| Termination | PC Pins | Mounting Type | Through Hole |
| Size / Dimension | Circular - 23.00mm Dia x 10.10mm H | ||
Product Info
| Series | Sonalert® | Washable | Yes |
| Technology | Piezo | Other Specifications | 71dB @ 3V, 61cm |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
