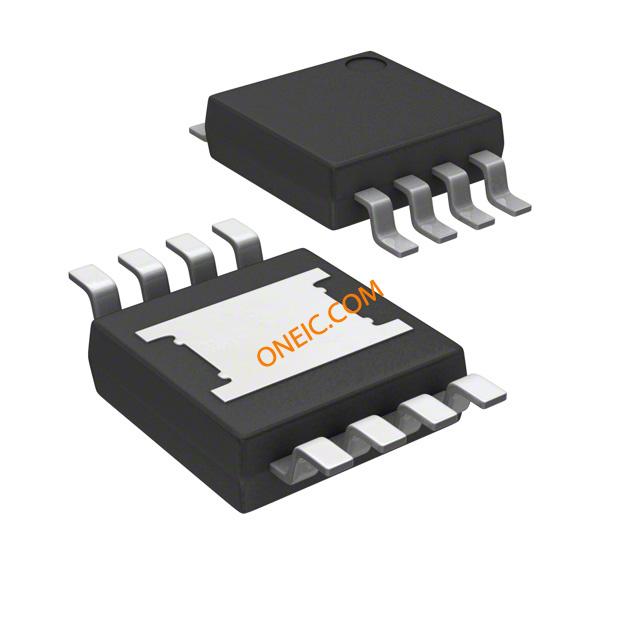

MASWSS0178TR-3000
| Manufacturer | |
| Description | RF Switch SPDT 10MHz to 3GHz 44dB 8-Pin MSOP EP T/R RF Switch ICs 10-3000MHz ISO 57dB IL .7db @1.9GHz SWITCH,SMT,MOSOP8LD-EP,ROHS |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1465-1386-2 | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
Electrical
| IIP3 | 43dBm (typ) | P1dB | 29dBm |
| Circuit | SPDT | Frequency | 3000 MHz |
| Impedance | 50 Ohm | Isolation | 43 dB |
| Turn On Time | 15 ns | Insertion Loss | 0.75 dB |
| Frequency - Max | 3000 MHz | Current - Output | 2 uA |
| Current - Supply | 2 uA | Voltage - Supply | 5 V |
| Voltage - Isolation | 44 dB | Voltage - Off State | 43 dB |
| Frequency - Output 2 | 10MHz | Insertion Loss (Max) | 0.8 dB |
| Switch Function/Rating | 3 SPDT | Frequency Bands (Low / High) | 10 to 3000 MHz |
| Switch Time (Ton, Toff) (Max) | 15 ns | ||
Mechanical
| Packaging | Reel | Mounting Style | SMD/SMT |
| Package / Case | 8MSOP EP | Package Cooled | MSOP EP |
| Number of Positions | 8 | Supplier Device Package | * |
Product Info
| Series | MASW | RF Type | Cellular, GPS, PCS |
| Topology | Absorptive | Technology | GaAs |
| Switch Type | SPDT | Manufacturer | MACOM |
| Number of Switches | 3 | ||
Environmental
| Operating Temperature | + 85 C | ||
