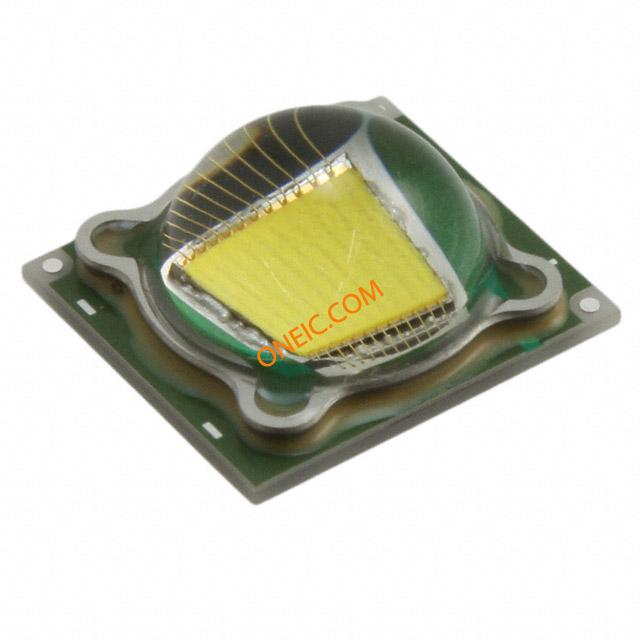

SST-90-W45S-F11-N2400
| Manufacturer | |
| Description | WHITE LED, SURFACE MOUNT, 4500K CCT, 70 CRI High Power LEDs - White White 4500K 900 - 950lm @ 3.15A BIG CHIP LED HB MODULE WHITE |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage | 3.25V | Wavelength | 4500K |
| Luminous Flux | 950 lm | Viewing Angle | 100 deg |
| Current - Output | 3.15A | Driver Circuitry | No |
| LED Forward Current | 3.15 A | LED Forward Voltage | 3.25 V |
| Current Rating (Max) | 9A | ||
Mechanical
| Color | White, Neutral | Width | 10 mm |
| Height | 5.4 mm | Length | 11 mm |
| Packaging | Tray | Lamp Color | 4500 K |
| Lens Color | Clear | Mounting Style | SMD/SMT |
| Connector Usage | No | Illumination Color | Neutral White |
| CRI (Color Rendering Index) | 70 | ||
Product Info
| Configuration | Square | ||
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | Luminous Flux @ Current/Temperature | 925 lm |
Documents & Media
PDF Document
