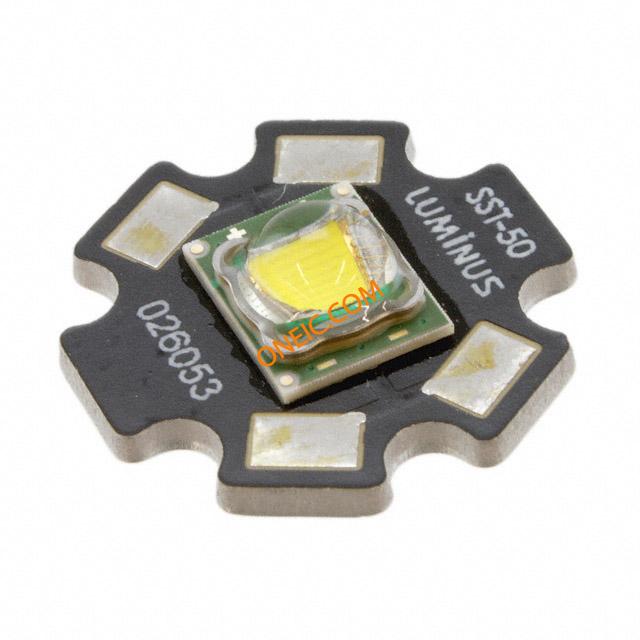

SSR-50-W45S-R21-GJ400
| Manufacturer | |
| Description | WHITE SST-50 LED ON STAR BOARD, 4500K CCT, 70 CRI High Power LEDs - White White 4500K 425 - 450lm @ 1.75A BIG CHIP LED HB MODULE WHITE |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage | 3.2V | Wavelength | 4500K |
| Luminous Flux | 450 lm | Viewing Angle | 100 deg |
| Current - Output | 1.75A | Driver Circuitry | No |
| LED Forward Current | 1.75 A | LED Forward Voltage | 3.2 V |
| Current Rating (Max) | 5A | ||
Mechanical
| Color | White | Width | 19.9 mm |
| Height | 6.1 mm | Length | 19.9 mm |
| Packaging | Tray | Lamp Color | 4500 K |
| Lens Color | Clear | Mounting Style | SMD/SMT |
| Connector Usage | No | Illumination Color | Neutral White |
| CRI (Color Rendering Index) | 70 | ||
Product Info
| Configuration | Star | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 468 lm |
Documents & Media
PDF Document
