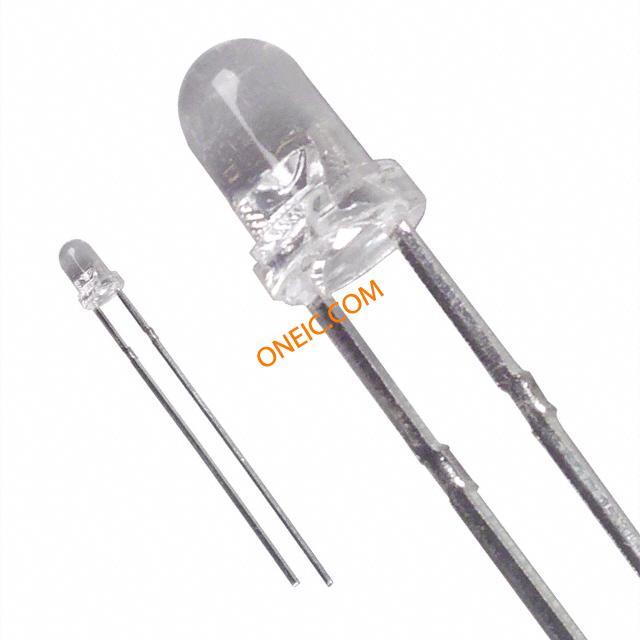

OED-EL-8L
| Manufacturer | |
| Description | Infrared Emitters 3mm IRED DIODE IR EMITTER 3MM IR CLR LENS LED IrLED 940nm 2-Pin T-1 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Infrared Emitters | Standard Package | 1,000 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Beam Angle | 30 deg | Wavelength | 940 nm |
| Power - Rated | 150 mW | Viewing Angle | 30 deg |
| Voltage - Supply | 1.2V | LED Forward Current | 100 mA |
| LED Forward Voltage | 1.2 V | Radiant Intensity (Ie) Min @ If | 5.6 mW/sr |
| Current - Peak Pulse (10/1000us) | 100 mA | Current - Average Rectified (Io) (per Diode) | 100mA |
Mechanical
| Packaging | Bulk | Lens Style | Dome |
| Orientation | Top View | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | T-1 |
| Lens Style/Size | 35° | Illumination Color | Infrared |
Product Info
| Output Configuration | Through Hole | ||
Environmental
| Operating Temperature | + 85 C | ||
