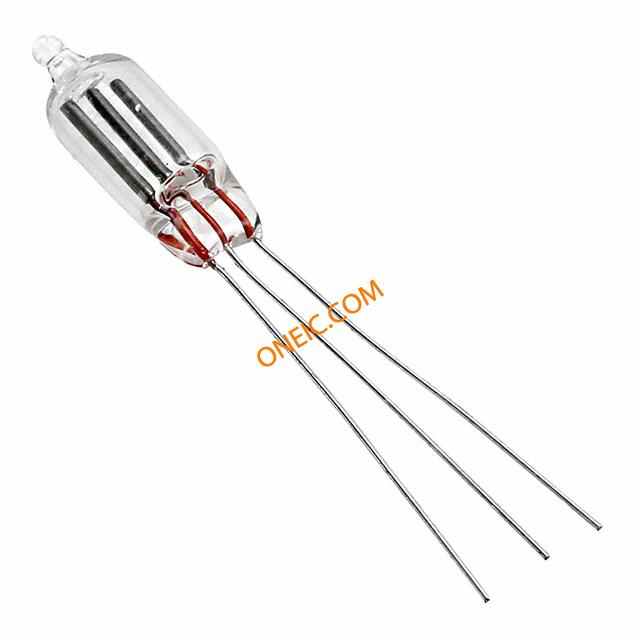

GT-RLSA3450
| Manufacturer | |
| Description | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors Surge Arrestor 450VDC 3 leaded ARRESTOR 450VDC 3L LD GAS TUBE Surge Arrestor Light Duty Arrestor 450VDC 1.5KA Thru-Hole ARRESTER 450VDC 3L LD GAS TUBE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 67-2179 | Product Category | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | Fault Protection | Failsafe Not Protected |
Electrical
| Tolerance | ±15% | Fail Short | No |
| Number of Poles | 3 | Insulation Resistance | 10 GOhms |
| Current - Peak Pulse (8/20us) | 1.5 kA | Voltage - DC Spark Over (Nom) | 450V |
| Impulse Discharge Current (8/20us) | 1.5kA | ||
Mechanical
| Length | 19 mm | Diameter | 7 mm |
| Mounting Style | Through Hole | Termination Style | Radial |
Product Info
| Series | * | Technology | Gas Discharge Tubes |
| Manufacturer | Lumex | ||
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Operating Temperature | - 65 C to + 125 C |
