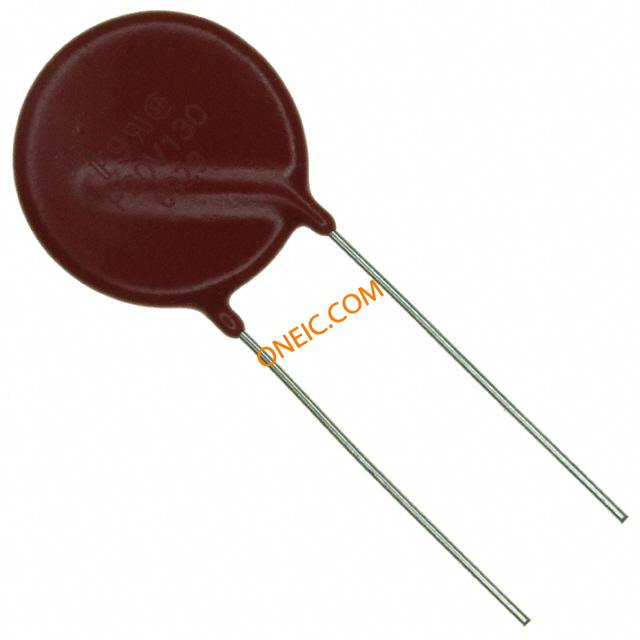

V20E130P
| Manufacturer | |
| Description | Varistors 130Vrms 10kA 1900pF 20mm Disc Var MOV 130VAC/170VDC 10000A 226V Radial Bulk RADIAL VARISTOR 20MM ROHS / LEAD FREE VARISTOR 184V 10KA DISC 20MM METAL OXIDE VARISTOR, 170V 340V RAD Varistor,RadialLead,MetalOxide,130Vms,20mmDisc,10kA |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Product | MOV |
| Unit Pack | 0 | Product Category | Varistors |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85331000 | ||
Electrical
| Capacitance | 1900 pF | Voltage Rating | 170 V |
| Current - Surge | 10 kA | Maximum AC Volts | 130VAC |
| Maximum DC Volts | 170VDC | Voltage - Clamping | 340 V |
| Voltage - Rated AC | 130 VAC | Current Rating (Max) | 100 A |
| Contact Voltage (Max) | :170V | Voltage - Input (Min) | 130 |
| Varistor Voltage (Max) | 184 V to 226 V | Current - Peak Pulse (8/20us) | 100 A |
| Voltage - DC Spark Over (Nom) | 170 VDC | ||
Mechanical
| Depth | 5.6 mm | Height | 26.5 mm |
| Weight | 0.003 | Diameter | 20 mm |
| Packaging | Bulk | Lead Style | Radial |
| Size - Body | Not Required | Lead Spacing | 11 mm |
| Pitch - Post | 10 | Mounting Type | Radial |
| Package / Case | Disc 20mm | Size / Dimension | 20 mm Dia. x 5.6 mm H |
| Termination Style | Radial | ||
Product Info
| Energy | 100J | Series | ZA |
| Technology | Metal Oxide | Number of Circuits | 1 |
Environmental
| Surge Rating (Watts) | 100 J | Operating Temperature | - 55 C to + 85 C |
