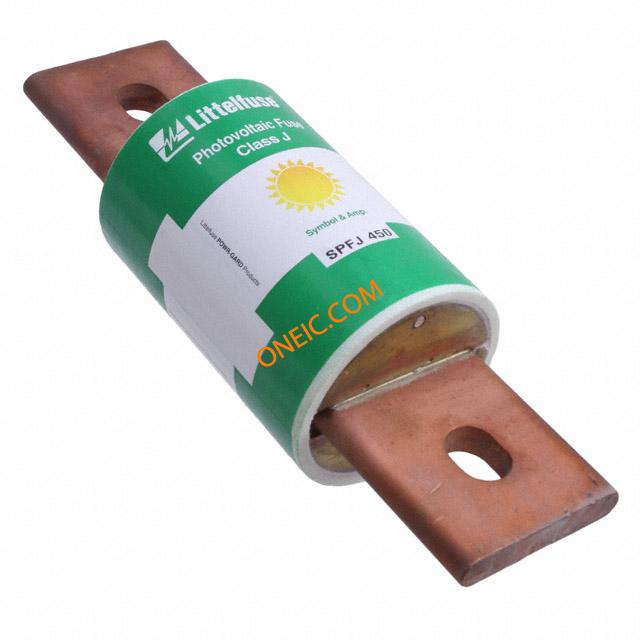

SPFJ450.X
| Manufacturer | |
| Description | Fuses 1000V 450A SOLAR FUSE 450A 1000VDC PHOTOVOLTAIC CLASS J FUSE FUSE 1000VDC CLSS J SOLAR 450A Specialty Fuses 1000V 450A SOLAR FUSE Fuse Class J 450A 600V 2-Pin Tap Bolt |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Product | Specialty Fuses |
| Unit Pack | 0 | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
Electrical
| Current | 450A | Indicator | Without Indicator |
| Resistance | 0.187 Ohms | Melting I2t | 317627 |
| Voltage Rating | 1 kV | Interrupt Output | 200 kA at 600 VAC |
| DC Cold Resistance | 0.19 Ohm | Voltage - Rated AC | 600 V |
| Current Rating (Max) | 450 A | Voltage - DC Reverse (Vr) (Max) | 1000 V |
Mechanical
| Size | 2.500" Dia x 8.000" L (63.50mm x 203.20mm) | Depth | Not Required mm |
| Height | Not Required mm | Diameter | 63.5 mm |
| Packaging | Bulk | Body Material | Melamine |
| Mounting Type | Holder | Mounting Style | Stud |
| Package / Case | 95.3 mm | Housing Material | Melamine |
| Length - Overall | 95.3 mm | Size / Dimension | 95.3 mm L x 63.5 mm D |
| Termination Style | Bolt Down | Number of Positions | 2 |
| Supplier Device Package | Round Body Fuses | ||
Product Info
| Type | Solar Photovoltaic Fuse | Series | SPFJ |
| Fuse Size | Class J | Fuse Type | Fast Blow |
| Product Type | Solar Photovoltaic Fuse | Output Configuration | Holder |
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | ||
