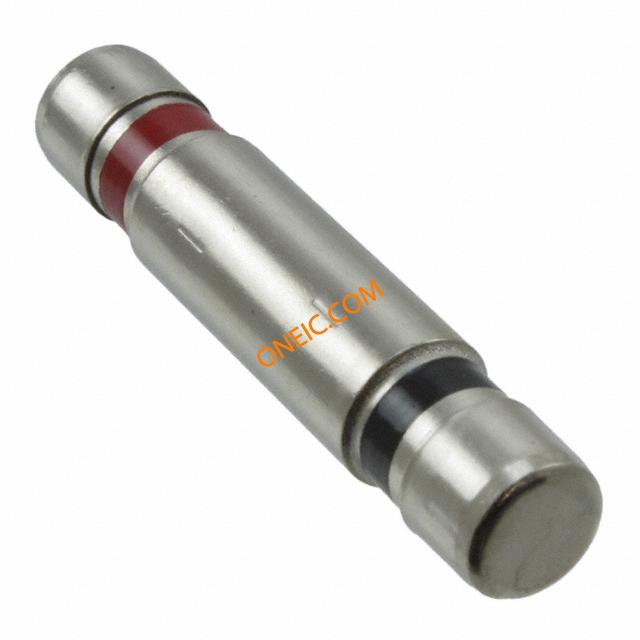

SL1026-700
| Manufacturer | |
| Description | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors 700V Delta 3 Terminal Gas Discharge Tubes 20KADC 10AAC 2.5pF Cartridge Holder GP DELTA 3T 700V GAS TUBE GDT 700V 20KA 3PIN CART GAS DISCHARGE TUBE, 3T, 700V Gas Discharge Tube 200V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 0 |
| Part # Aliases | SL1026-700 | Product Category | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85363010 |
| Fault Protection | N | Approval Agency Marking | UL |
Electrical
| Fail Short | No | Capacitance | 2.5 |
| Voltage Rating | 700 V | Number of Poles | 3 |
| Voltage - Breakover | 700 V | Insulation Resistance | 10 |
| Current - Peak Pulse (8/20us) | 40 kA | Voltage - DC Spark Over (Nom) | 700V |
| Current - Discharge (Max) (8/20uS) | 10 | Current - Discharge (Nom) (8/20uS) | 10A |
| Impulse Discharge Current (8/20us) | 40kA | ||
Mechanical
| Depth | 9.1 mm | Height | 9.1 mm |
| Weight | 0.001 | Packaging | Tray |
| Mounting Type | Holder | Package / Case | Cartridge |
| Locking Feature | :Gas Discharge Tube | Length - Overall | 45 mm |
| Size / Dimension | 0.87 mm D x 45 mm L | Termination Style | Cartridge |
| Number of Contacts | 2 | ||
Product Info
| Series | SL1026 | Technology | Gas Discharge Tube |
Environmental
| Operating Temperature | 90 | Operating Temperature - Junction | 90C |
