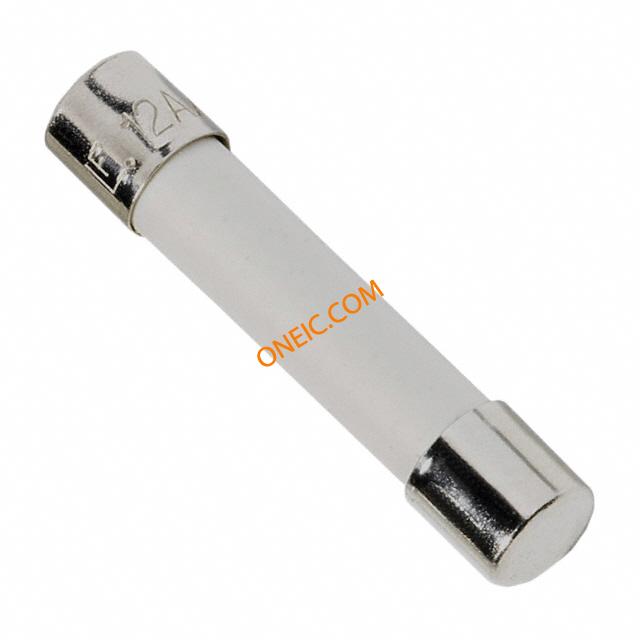

0505010.MXP
| Manufacturer | |
| Description | Fuses 500V 10A 3AB PB-FREE FUSE 450V 3AB PB-FREE 10A FUSE 450V 3AB FAST 10A Cartridge Fuses 500V 10A 3AB PB-FREE |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Product | Specialty Fuses |
| Unit Pack | 0 | Product Category | Fuses |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CE, cULus, SEMKO |
Electrical
| Indicator | Without Indicator | Resistance | 0.0167 Ohms |
| Melting I2t | 91 | Response Time | Fast |
| Voltage Rating | 450 V | Interrupt Output | 20 kA at 450 VAC / 1000 A at 250 VDC |
| DC Cold Resistance | 0.0167 Ohm | Current Rating (Max) | 10 A |
| Voltage - Supply (Min) | 20000A AC, 1000A DC | ||
Mechanical
| Diameter | 6.35 mm | Packaging | Bulk |
| Body Material | Ceramic | Mounting Type | Holder |
| Mounting Style | Through Hole | Package / Case | 31.75 mm |
| Size / Dimension | 31.75 mm L x 6.35 mm D | Termination Style | Axial |
| Supplier Device Package | Leaded Fuses | ||
Product Info
| Type | Ceramic Fuse | Series | 505 |
| Fuse Size | 3AB (6.3 mm x 32 mm) | Fuse Type | Fast Blow |
| Product Type | Ceramic Fuse | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
