0251.500MXL
| Manufacturer | |
| Description | Fuses 125V .5A Fuse Subminiature Very Fast Acting 0.5A 125V Axial 2.8 X 7.11mm Ceramic Loose Pack FUSE 125V PICO II FA RoHS .500A FUSE PICO FAST .500A 125V AXIAL Fuses with Leads (Through Hole) 125V .5A FUSE, PCB, 500mA, 125V, VERY FAST ACTING Fuse;Submin;VeryFastActing;0.5A;Supplemental;Dims0.11x0.28";Encapsulated;PCB Fuse: fuse; ultra rapid; axial; 500mA; 125V; 2,8x7,1mm; PICO II LITTELFUSE 251 SRIES 500 AMPS PICO II, FAST ACTING ROHS 1KPC AMMO PACK |
| Category |
Business
| MOQ | 1 | Product | Specialty Fuses |
| Unit Pack | 0 | Product Category | Fuses |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85361010 | Rad Hardened | No |
| Approval Agency | CCC, CSA, QPL, TUV, UL | ||
Electrical
| Indicator | Without Indicator | Resistance | 0.28 Ohms |
| Melting I2t | 0.0598 | Response Time | Fast |
| Voltage Rating | 125 V | Interrupt Output | 50 Amps at 125 VoltsAC / 300 Amps at 125 VoltsDC |
| DC Cold Resistance | 0.28 Ohm | Voltage - Rated AC | 125V |
| Current Rating (Max) | 500 mA | Fuse Characteristics | ultra rapid |
| Contact Voltage (Max) | :125V | Voltage - Input (Min) | 125 |
| Blowout Characteristic | :Very Fast Acting | Voltage - Supply (Min) | 50A AC, 300A DC |
Mechanical
| Depth | Not Required mm | Height | Not Required mm |
| Weight | 0.002 | Diameter | 2.8 mm |
| Packaging | Bulk | Pin Diameter | 0.64mm |
| Body Material | Epoxy Coated Cement | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 7.11 mm |
| Housing Material | Ceramic | Length - Overall | 7.11 mm |
| Material - Blade | Ceramic | Package Quantity | 1000 |
| Size / Dimension | 7.11 mm L x 2.8 mm D | Termination Style | Axial |
| Number of Contacts | 2 | Number of Positions | 2 |
| Supplier Device Package | Leaded Fuses | ||
Product Info
| Spg | 1000 | Type | PCB Mount Fuse |
| Energy | 0.0598A2s | Series | 251 |
| Fuse Size | PICO II | Fuse Type | Fast Blow |
| Product Type | PCB Mount Fuse | Number of Units | 1000 |
| Other Specifications | 216.5mV | ||
Environmental
| Must Operate | Very Fast | Operating Temperature | - 55 C to + 125 C |
Documents & Media
Similar Parts
02810007H
Littelfuse
Fuse Holders Micro Horizontal PCB Mount Fuse Holder Through Hole ACS MICRO FUSE HLDR HORZ PC BOARD MT FUSE HLDR RADIAL 125V 5A PNL MNT FUSE HOLDER RAD 125V 5A PNL MNT FUSEHOLDER, PCB, HORIZONTAL Hldr,Fuse;125V;5A;PCBMount;SupplementaryProtection;ULListed Fuse Holder Micro Horizontal PCB Mount
02810005H
Littelfuse
Fuse Holders Micro Vertical PCB Mount Fuse Holder Through Hole Bulk ACS MICRO FUSE HLDR VERT PC BOARD MT FUSE HLDR RADIAL 125V 5A PNL MNT FUSEHOLDER, PCB MOUNT, 5A MAX Fuseholder;125;5A(Max.);PCBMount;MicrofusePlug-In;ULListed Fuse Holder Micro Vertical PCB Mount
02810001H
Littelfuse
Fuse Holders Micro ACS MICRO FUSE FUSEHLDR FUSE HLDR RADIAL 125V 5A PNL MNT Fuse Holder Micro
02810008H
Littelfuse
Fuse Holders Micro Vertical PCB Mount Fuse Holder Through Hole Bulk ACS MICRO FUSE HLDR VERT PC BOARD MT FUSE HLDR RADIAL 125V 5A PNL MNT Fuse Holder 2-Pin Bulk Fuse Holder Micro Vertical PCB Mount

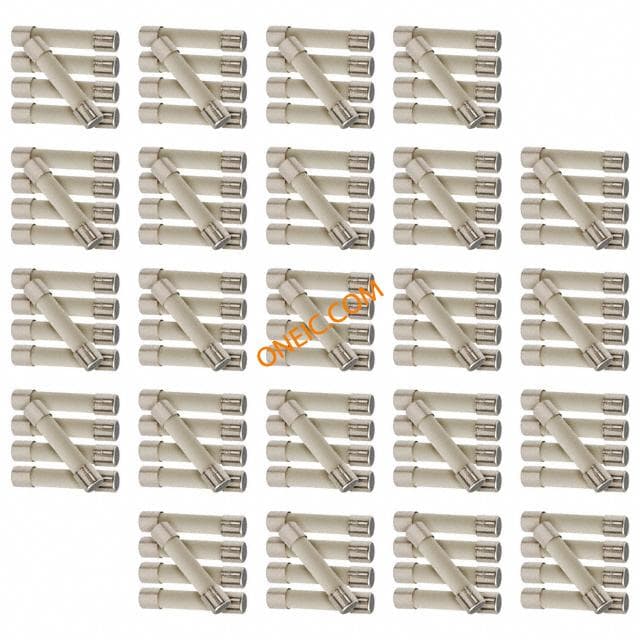

251L-473L-KIT
