02171.25HXP
| Manufacturer | |
| Description | Fuse Miniature Fast Acting 1.25A 250V Holder Cartridge 5 X 20mm Glass Bulk FUSE 5x20mm H PACK (P) FUSE 250V IEC FA 5X20 1.25A Cartridge Fuses 250V 1.25A Fast Acting Fuse;Cylinder;FastActing;1.25A;Dims5x20mm;Glass;Cartridge;250VAC;0.07Ohms Fuse: fuse; quick blow; glass; 1.25A; 250VAC; 5x20mm; brass |
| Category |
Business
| MOQ | 1 | Product | Specialty Fuses |
| Unit Pack | 0 | Product Category | Cartridge Fuses |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CCC, CE, CSA, K-MARK, PSE, SEMKO, UL, VDE | ||
Electrical
| Indicator | Without Indicator | Resistance | 70 mOhms |
| Melting I2t | 2.23 | Response Time | Fast |
| Voltage Rating | 250V | Interrupt Output | 35 A at 250 VAC |
| DC Cold Resistance | 0.0701 Ohm | DC Resistance (DCR) | 0.07Ohms |
| Current Rating (Max) | 1.25A | Fuse Characteristics | quick blow |
| Voltage - Input (Min) | 250 | Voltage - Supply (Min) | 35A |
| Power Dissipation (Max) | 1.6(Typ) | ||
Mechanical
| Weight | 1.02 g | Diameter | 5.2 mm |
| Packaging | Bulk | Termination | Cartridge |
| Mounting Type | Holder | Mounting Style | Holder / Clip |
| Package / Case | 5mm x 20mm | Material - Body | Glass |
| Contact Material | brass | Length - Overall | 20 |
| Material - Blade | Glass | Package Quantity | 100 |
| Primary Material | Cylinder | Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Termination Style | Clip | Number of Contacts | 2 |
| Supplier Device Package | Cylindrical | Contact Material - Plating | nickel plated |
Product Info
| Spg | 100 | Type | Miniature |
| Class | Supplemental | Series | 217 |
| Fuse Size | 5 mm x 20 mm | Fuse Type | Cartridge, Glass |
| Manufacturer | 217PSeries | Product Type | Ceramic Fuse |
| Number of Units | 1 | Other Specifications | 0.2V |
Environmental
| Must Operate | Fast | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
05200101Z
Littelfuse
Fuse Holders 5x20mm PCB Mount Fuse Block Bulk ACS OMNI-BLOK 5X20MM PCB MT FUSE BLOK CARTRIDGE 300V 10A PCB FUSEHOLDER, 2X20MM ACSOMNI-BLOK5X20MMPCBMT Fuse Holder 5x20mm PCB Mount
05200002H
Littelfuse
Fuse Holders 5x20mm PCB Mount FUSEHOLDER BLOCK-P.C. BOARD 5 FUSEHOLDER BLOCK-P.C. BOARD 5 X 20 FUSE BLOCK CART 250V 6.3A PCB 05200002H FUSE HOLDER, 5 X 20MM Fuse Holder 5x20mm PCB Mount
05200004Z
Littelfuse
Fuse Holders 5x20mm Sldr Termo Fuse Block ACS OMNI-BLOK 5X20MM SLDR TERM FUSE BLOCK CART 300V 10A CHASSIS FUSE HOLDER, 5 X 20MM Fuse Holder 5x20mm Sldr Termo
00300210N
Littelfuse
Fuse Clips Clip 5 mm Nickel Plated Fuse Clip 10A 250VDC/250VAC Pin Through Hole ACS 5mm PCB FUSE Clip FUSE CLIP CARTRIDGE 10A PCB
02860677H
Littelfuse
Fuse Holders 5x20MM Fliptop Shock Safe Fuse Holder Bulk ACS FLIP-TOP SHOCK-SAFE 5X20MMFHLDR FUSE HLDR CART 250V 10A PNL MNT FUSE HOLDER, 5 X 20MM, PANEL MOUNT Fuse holder; tube fuses; 5x20mm; 10A; 250V; Mounting: on panel Fuse Holder 5x20MM Fliptop Shock Safe
05200003Z
Littelfuse
Fuse Holders 5x20mm QC Term ACS OMNI-BLOK 5X20MM QC TERM FUSE BLOCK CART 300V 10A CHASSIS FUSE HOLDER, 5 X 20MM OMNI-BLOK5X20MMQCTERM
01110005MR
Littelfuse
Fuse Clips Clip 5mm Nickel Plated Fuse Clip 250VAC Radial Through Hole Ammo Pack ACS FUSE CLIP 5 MM TIN PLATED FUSE CLIP CARTRIDGE 250V 10A PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT Fuse clips; tube fuses; Mounting: THT; Pitch:5mm; 10A Clip 5x20 5mm Tin Plated
64900001039
Littelfuse
Fuse Holders PC MOUNT 5 X 20 MM FUSEHOLDERS FUSE HOLDER 5x20 BLOCK thermopl FUSE BLOCK CART 250V 6.3A PCB 5x20mm Fuseholder 6.3A 250V FUSE HOLDER, 5 X 20MM, PCB MOUNT ACSBLOCKHOLDERFOR5X20BIGBOX Littelfuse 6.3A PCB 固定熔断器座 , 适用于管式熔断器, 250 V Fuse Holder PC MOUNT 5 X 20 MM
01000056Z
Littelfuse
Fuse Clips ACS PC 5MM CLIP BRASS/TIN-PLTD Fuse Clip 10A Pin Through Hole Bulk ACS PC 5MM FUSE CLIP BRASS/TIN-PLTD FUSE CLIP CARTRIDGE 250V 10A PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT FuseClip;PanelMount;20A(Max.) ACSPC5MMFUSECLIPBRASS/TIN-PLTD Littelfuse 100 系列 弹簧，黄铜 PCB安装 熔断器夹 , 用于5 x 20mm 管式熔断器 ACS PC CLIP for 5x20 BRASS/TIN
01000056H
Littelfuse
Fuse Clips PC 5mm Clip Brass & Tin Plated Fuse Clip Through Hole Bulk FUSE CLIP CARTRIDGE 250V 10A PCB

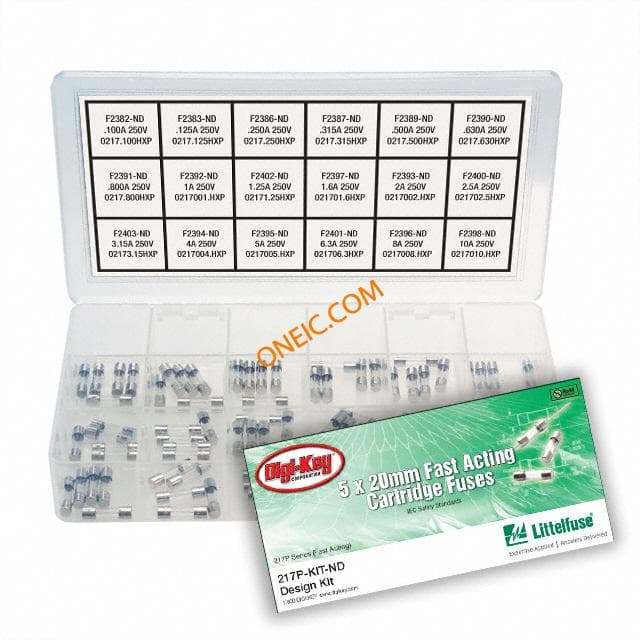

217P-KIT
