021606.3HXP
| Manufacturer | |
| Description | Fuses 250V 6.3A Fast Acting Fuse Miniature Fast Acting 6.3A 250V Holder Cartridge 5 X 20mm Ceramic Bulk FUSE FAST 250VAC 6.3A 5X20 FUSE, CARTRIDGE, 6.3A, 5X20MM, FAST ACT FUSE5X20MMHPACK(P) Fuse: fuse; quick blow; ceramic; 6.3A; 250VAC; 5x20mm Littelfuse F熔断速度 6.3A 管式熔断器 , 5 x 20mm |
| Category |
Business
| Product | Specialty Fuses | Product Category | Fuses |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85361010 | Approval Agency | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE |
Electrical
| Indicator | Without Indicator | Resistance | 14 mOhms |
| Melting I2t | 56.43 | Response Time | Fast |
| Voltage Rating | 250 V | Interrupt Output | 1.5 kA at 250 VAC |
| DC Cold Resistance | 0.0137 Ohm | Voltage - Rated AC | :250V |
| Current Rating (Max) | 6.3 A | Fuse Characteristics | quick blow |
| Voltage - Input (Min) | 250 | Blowout Characteristic | :Fast Acting |
| Voltage - Supply (Min) | 1500A | Power Dissipation (Max) | 4(Typ) |
Mechanical
| Weight | 0.002 | Diameter | 5.2 mm |
| Packaging | Bulk | Body Material | Ceramic |
| Mounting Type | Holder | Mounting Style | Holder |
| Package / Case | 20 mm | Length - Overall | 20 |
| Material - Blade | Ceramic | Package Quantity | 100 |
| Size / Dimension | 20 mm L x 5.2 mm D | Termination Style | Clip |
| Number of Contacts | 2 | Supplier Device Package | Cartridge Fuses |
Product Info
| Spg | 100 | Type | Ceramic Fuse |
| Series | 216 | Fuse Size | 5 mm x 20 mm |
| Fuse Type | Fast Blow | Product Type | Ceramic Fuse |
| Number of Units | 1 | Other Specifications | 0.2V |
Environmental
| Must Operate | Fast | Operating Temperature | - 55 C to + 125 C |
Documents & Media
Similar Parts
05200101Z
Littelfuse
Fuse Holders 5x20mm PCB Mount Fuse Block Bulk ACS OMNI-BLOK 5X20MM PCB MT FUSE BLOK CARTRIDGE 300V 10A PCB FUSEHOLDER, 2X20MM ACSOMNI-BLOK5X20MMPCBMT Fuse Holder 5x20mm PCB Mount
05200002H
Littelfuse
Fuse Holders 5x20mm PCB Mount FUSEHOLDER BLOCK-P.C. BOARD 5 FUSEHOLDER BLOCK-P.C. BOARD 5 X 20 FUSE BLOCK CART 250V 6.3A PCB 05200002H FUSE HOLDER, 5 X 20MM Fuse Holder 5x20mm PCB Mount
05200004Z
Littelfuse
Fuse Holders 5x20mm Sldr Termo Fuse Block ACS OMNI-BLOK 5X20MM SLDR TERM FUSE BLOCK CART 300V 10A CHASSIS FUSE HOLDER, 5 X 20MM Fuse Holder 5x20mm Sldr Termo
00300210N
Littelfuse
Fuse Clips Clip 5 mm Nickel Plated Fuse Clip 10A 250VDC/250VAC Pin Through Hole ACS 5mm PCB FUSE Clip FUSE CLIP CARTRIDGE 10A PCB
02860677H
Littelfuse
Fuse Holders 5x20MM Fliptop Shock Safe Fuse Holder Bulk ACS FLIP-TOP SHOCK-SAFE 5X20MMFHLDR FUSE HLDR CART 250V 10A PNL MNT FUSE HOLDER, 5 X 20MM, PANEL MOUNT Fuse holder; tube fuses; 5x20mm; 10A; 250V; Mounting: on panel Fuse Holder 5x20MM Fliptop Shock Safe
05200003Z
Littelfuse
Fuse Holders 5x20mm QC Term ACS OMNI-BLOK 5X20MM QC TERM FUSE BLOCK CART 300V 10A CHASSIS FUSE HOLDER, 5 X 20MM OMNI-BLOK5X20MMQCTERM
01110005MR
Littelfuse
Fuse Clips Clip 5mm Nickel Plated Fuse Clip 250VAC Radial Through Hole Ammo Pack ACS FUSE CLIP 5 MM TIN PLATED FUSE CLIP CARTRIDGE 250V 10A PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT Fuse clips; tube fuses; Mounting: THT; Pitch:5mm; 10A Clip 5x20 5mm Tin Plated
64900001039
Littelfuse
Fuse Holders PC MOUNT 5 X 20 MM FUSEHOLDERS FUSE HOLDER 5x20 BLOCK thermopl FUSE BLOCK CART 250V 6.3A PCB 5x20mm Fuseholder 6.3A 250V FUSE HOLDER, 5 X 20MM, PCB MOUNT ACSBLOCKHOLDERFOR5X20BIGBOX Littelfuse 6.3A PCB 固定熔断器座 , 适用于管式熔断器, 250 V Fuse Holder PC MOUNT 5 X 20 MM
01000056Z
Littelfuse
Fuse Clips ACS PC 5MM CLIP BRASS/TIN-PLTD Fuse Clip 10A Pin Through Hole Bulk ACS PC 5MM FUSE CLIP BRASS/TIN-PLTD FUSE CLIP CARTRIDGE 250V 10A PCB FUSE HOLDER, 5 X 20MM, PCB MOUNT FuseClip;PanelMount;20A(Max.) ACSPC5MMFUSECLIPBRASS/TIN-PLTD Littelfuse 100 系列 弹簧，黄铜 PCB安装 熔断器夹 , 用于5 x 20mm 管式熔断器 ACS PC CLIP for 5x20 BRASS/TIN
01000056H
Littelfuse
Fuse Clips PC 5mm Clip Brass & Tin Plated Fuse Clip Through Hole Bulk FUSE CLIP CARTRIDGE 250V 10A PCB

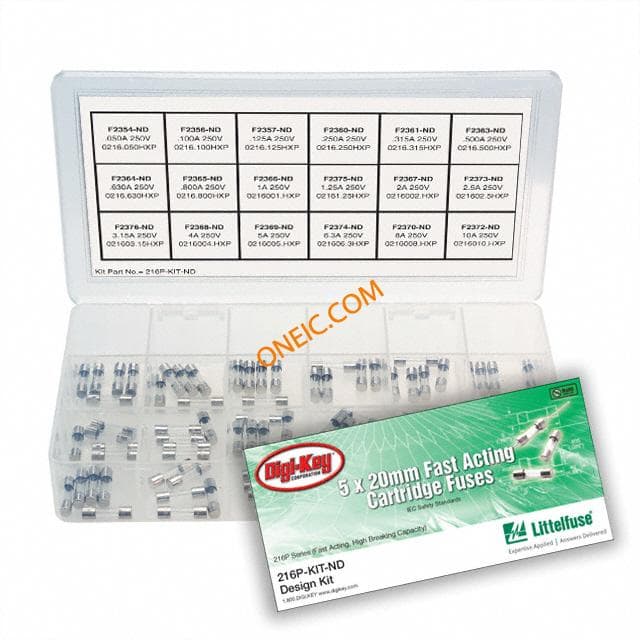

216P-KIT
