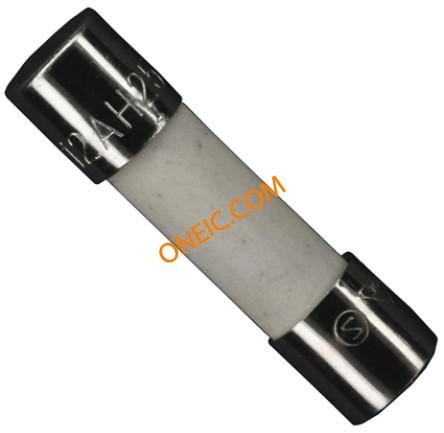

0215012.MXP
| Category |
对参数有疑问?问 AI 助手
Business
| MOQ | 1000 | Product | Specialty Fuses |
| Unit Pack | 1000 | Product Category | Fuses |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85361050 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | IEC |
Electrical
| Current | 12A | Voltage | 250V |
| Indicator | Without Indicator | Resistance | 6 mOhms |
| Access Time | SLOW | Melting I2t | 515.5 |
| Power - Rated | 4 W | Response Time | Slow |
| Voltage Rating | 250 V | Frequency - Max | T |
| Interrupt Output | 1.5 kA at 250 VAC | DC Cold Resistance | 0.0061 Ohm |
| Voltage - Rated AC | 250V | Current Rating (Max) | 12 A |
| Fuse Characteristics | time-lag | Voltage - Input (Min) | 1.5 kA @ 250 V ac |
| Blowout Characteristic | :Time Delay | Voltage - Supply (Min) | 1500 |
| Power Dissipation (Max) | 4 | ||
Mechanical
| Depth | Not Required mm | Height | 20mm |
| Length | :20mm | Weight | 0.05 |
| Diameter | 5.2 mm | Packaging | Bulk |
| Body Material | Ceramic | Mounting Type | Holder |
| Mounting Style | Holder | Package / Case | 20 mm |
| Material - Core | :Ceramic | Contact Material | brass |
| Housing Material | Ceramic | Length - Overall | 20 mm |
| Material - Blade | Ceramic | Package Quantity | 1000 |
| Size / Dimension | 20 mm L x 5.2 mm D | Termination Style | Clip |
| Diameter - Outside | :5mm | Number of Contacts | 2 |
| Number of Positions | 2 | Supplier Device Package | Cartridge Fuses |
| Contact Material - Plating | nickel plated | Material - Housing & Prism | :Ceramic |
Product Info
| Spg | 1000 | Type | Ceramic Fuse |
| Energy | 515.5A2s | Series | 215 |
| Fuse Size | 5 mm x 20 mm | Fuse Type | Time Delay / Slow Blow |
| Matchcode | FU12AS5X20CC | Product Type | Ceramic Fuse |
| Number of Units | 1 | Firmware Version | ceramic |
| Standard Leadtime | 14 weeks | Other Specifications | 100mV |
Environmental
| Temperature | 260°C / 5 s | Must Operate | Slow Blow |
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- 215.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
