点击放大查看

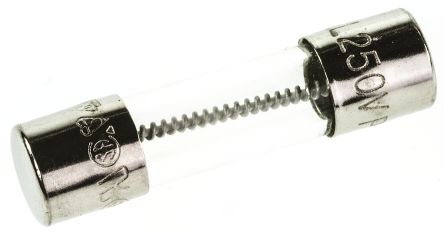

02133.15MXP
| Manufacturer | |
| Description | Fuse Miniature Slow Blow Acting 3.15A 250V Holder Cartridge 5 X 20mm Glass Bulk FUSE 5x20 T LBC 3.15A/250V (P) FUSE 250V IEC SLO 5X20MM 3.15A Anti surge T LBC min fuse,3.15A 5x20mm Cartridge Fuses 250V 3.15A Slo-Blo FUSE, ANTISURGE, 3.15A, GLASS, 5X20MM 20MMFUSEA/S3.15A Fuse: fuse; time-lag; glass; 3.15A; 250VAC; 5x20mm; brass; 213 Littelfuse T熔断速度 3.15A 管式熔断器 , 5 x 20mm 3.15A 250V slow 5x20 glass |
| Category |
Business
| MOQ | 1 | Product | Specialty Fuses |
| Unit Pack | 0 | Product Category | Cartridge Fuses |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85361010 |
| Approval Agency | BSI, CCC, CE, CSA, PSE, SEMKO, UL, VDE | ||
Electrical
| Indicator | Without Indicator | Resistance | 22 mOhms |
| Melting I2t | 202 | Power - Rated | 1.6W |
| Response Time | Slow | Voltage Rating | 250V |
| Frequency - Max | T | Interrupt Output | 35 A at 250 VAC |
| DC Cold Resistance | 0.0231 Ohm | Current Rating (Max) | 3.15A |
| Fuse Characteristics | time-lag | Voltage - Input (Min) | 35 A |
| Blowout Characteristic | :Slow Blow | Voltage - Supply (Min) | 35A |
| Power Dissipation (Max) | 1.6(Typ) | ||
Mechanical
| Height | 20mm | Weight | 0.001 |
| Diameter | 5mm | Packaging | Bulk |
| Body Material | Glass | Mounting Type | Holder |
| Mounting Style | Holder / Clip | Package / Case | 5mm x 20mm |
| Material - Core | :Glass | Contact Material | brass |
| Length - Overall | 20 | Material - Blade | Glass |
| Package Quantity | 1000 | Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Termination Style | Clip | Number of Contacts | 2 |
| Supplier Device Package | Cylindrical | Contact Material - Plating | nickel plated |
Product Info
| Spg | 1000 | Type | Miniature |
| Energy | 202A2s | Series | 213 |
| Fuse Size | 5 mm x 20 mm | Fuse Type | Cartridge, Glass |
| Product Type | Glass Fuse | Number of Units | 1000 |
| Other Specifications | 100mV | ||
Environmental
| Temperature | 250°C / 5 s | Must Operate | Slow Blow |
| Operating Temperature | -55°C ~ 125°C | ||
