7201TZQE
| Manufacturer | |
| Description | Switch Toggle ON None ON DPDT Round Toggle Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Toggle SWITCH TOGGLE DPDT 5A 120V Toggle Switches ON-ON DPDT LRND Switch,LARGEROUNDToggle,DPDT,ON-NONE-ON,PNL-MNTED,5A@120VACOR28VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | DPDT | Operation | OnNoneOn |
| Voltage Rating | 28 V | Number of Poles | 2 |
| Switch Function | On-On | Contact Resistance | Below10Milliohms(Typ.)Initial@2to4VDC,100mA |
| Voltage - Rated AC | 250V VAC | Dielectric Strength | 1000V |
| Current Rating (Max) | 5@120VAC 28VDC A | Insulation Resistance | 10^9Ohms(Min.) |
| Voltage - Input (Min) | 250 V | Switch Function/Rating | ON None ON |
| Voltage - DC Spark Over (Nom) | 28V VDC | ||
Mechanical
| Depth | 11.43 mm | Height | 42.17 mm |
| Packaging | Bulk | Body Finish | Miniature |
| Termination | SolderLugs | Contact Form | DPDT |
| Actuator Type | Standard Round | Mounting Type | Panel Mount with Threads |
| Terminal Type | Solder Lug | Bushing Thread | 15/32-32 |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Actuator Length | 17.45mm | Material - Body | GlassFilledNylon |
| Contact Material | Coin Silver | Housing Material | N/A/Stainless Steel |
| Length - Overall | 12.7 mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | Solder Lug | Actuator Style/Size | Round Toggle |
| Number of Positions | 3 | Bushing, Grommet Type | 15/32-32 |
| Switch Actuation Level | DPDT | Panel Cutout Dimensions | Circular - 11.91mm Dia |
| Material - Housing & Prism | N/A/Stainless Steel | ||
Product Info
| Type | Miniature | Series | 7000 |
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 100,000 Cycles | Application Specifics | Usedintelecommunications,instrumentationandmedicalequipment |
Environmental
| Seal Rating | Sealed | Operating Temperature | -30 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
PDF Document
Archive
PDF Document
Online Document
Online Document
Online Document
Online Document
Online Document
Similar Parts

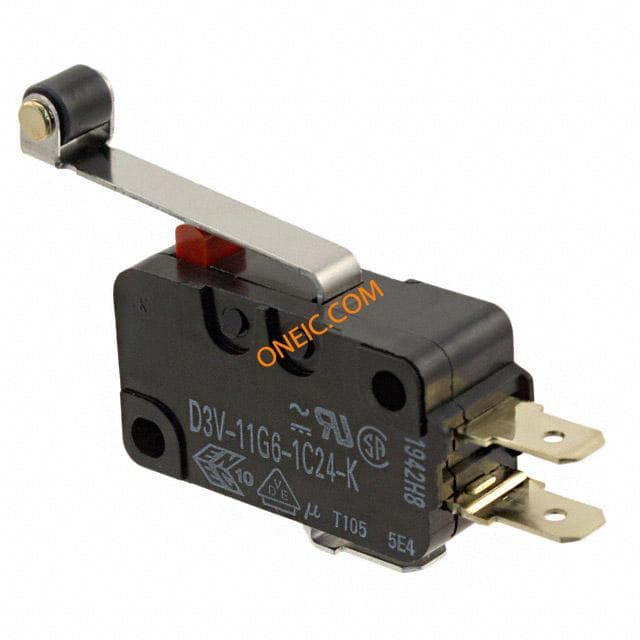

D3V-11G6-1C24-K
