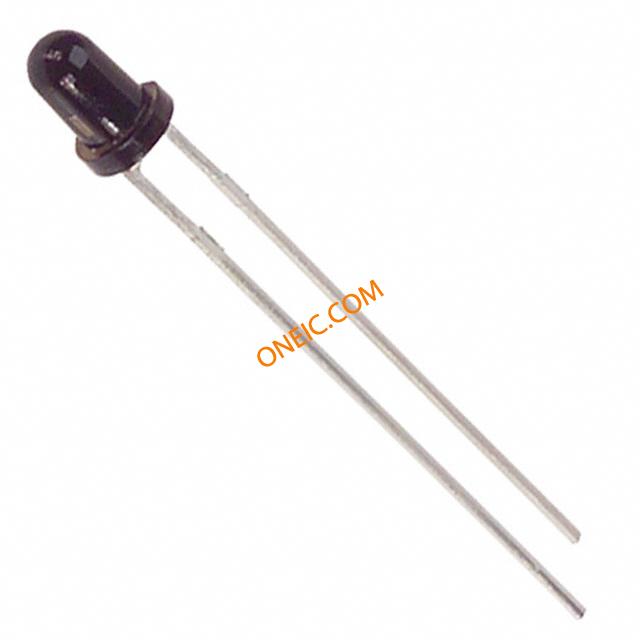

LTR-4206E
| Manufacturer | |
| Description | Phototransistor IR Chip Silicon 2-Pin T-1 Phototransistors Phototrans Filtered PHOTOTRAN NPN 3MM IR DARK |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Phototransistors | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Fall Time | 15 us | Wavelength | 940nm |
| Power - Max | 100mW | Filter Order | Visible Cut-off |
| Viewing Angle | Top View | Rise Time (Typ) | 10000(Typ) ns |
| Transistor Type | Phototransistor | Voltage - Supply | 30 V |
| Vgs(th) (Max) @ Id | 100nA | Current - Dark (Max) | 100 nA |
| Voltage - Input (Min) | 5 V | Power Dissipation (Max) | 100 mW |
| Current - Dark (Id) (Max) | 100nA | Current - Collector (Ic) (Max) | 4.5 mA |
| Max Propagation Delay @ V, Max CL | 15000(Typ) ns | ||

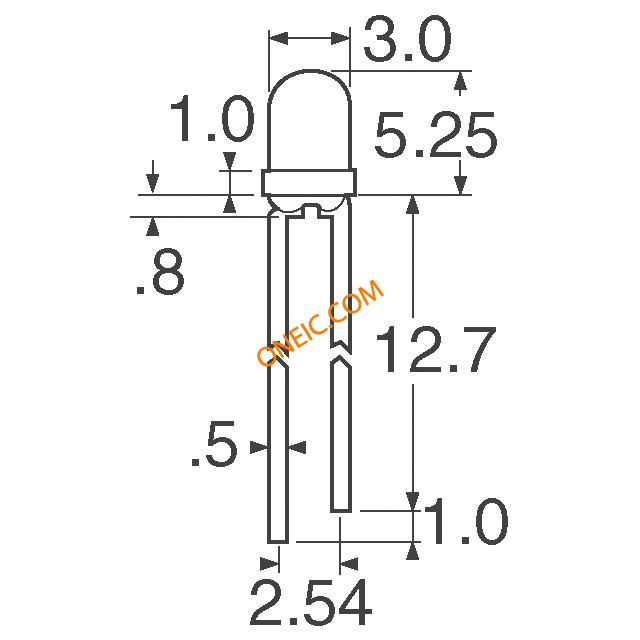

Mechanical
| Packaging | Bulk | Lens Color | Clear |
| Lens Style | Domed | Orientation | Top View |
| Lens Diameter | 3 mm | Mounting Type | Through Hole |
| Package / Case | 2T-1 | Lens Style/Size | 20° |
Product Info
| Type | IR Chip | Polarity | NPN |
| Output Configuration | Through Hole | ||
Environmental
| Operating Temperature | + 85 C | ||
Documents & Media
PDF Document
