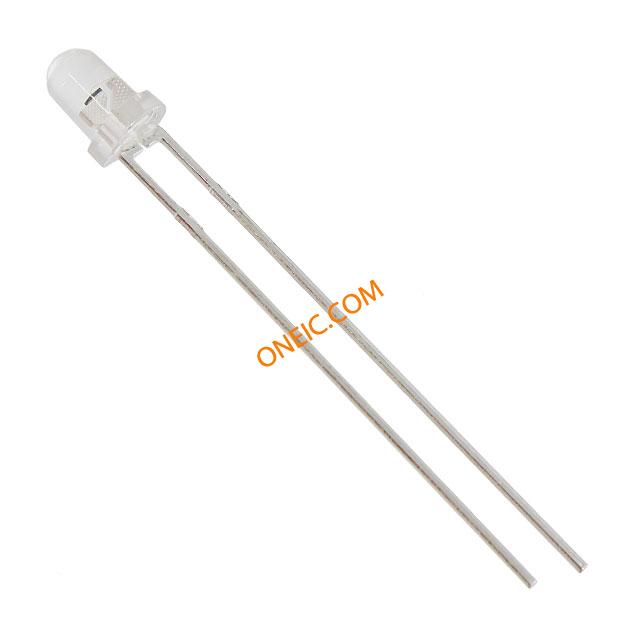

LTR-4206
| Manufacturer | |
| Description | Phototransistor IR Chip 2-Pin T-1 Phototransistors Phototrans Clear PHOTOTRAN NPN 3MM IR CLEAR |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Phototransistors | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Fall Time | 15 us | Wavelength | 940nm |
| Power - Max | 100mW | Viewing Angle | Top View |
| Rise Time (Typ) | 10000(Typ) ns | Transistor Type | Phototransistor |
| Voltage - Supply | 30 V | Vgs(th) (Max) @ Id | 100nA |
| Current - Dark (Max) | 100 nA | Voltage - Input (Min) | 5 V |
| Power Dissipation (Max) | 100 mW | Current - Dark (Id) (Max) | 100nA |
| Current - Collector (Ic) (Max) | 4.5 mA | ||
Mechanical
| Packaging | Bulk | Lens Style | Domed |
| Orientation | Top View | Lens Diameter | 3 mm |
| Mounting Type | Through Hole | Package / Case | 2T-1 |
| Lens Style/Size | 20° | ||
Product Info
| Type | IR Chip | Polarity | NPN |
| Output Configuration | Through Hole | ||
Environmental
| Operating Temperature | + 85 C | ||
