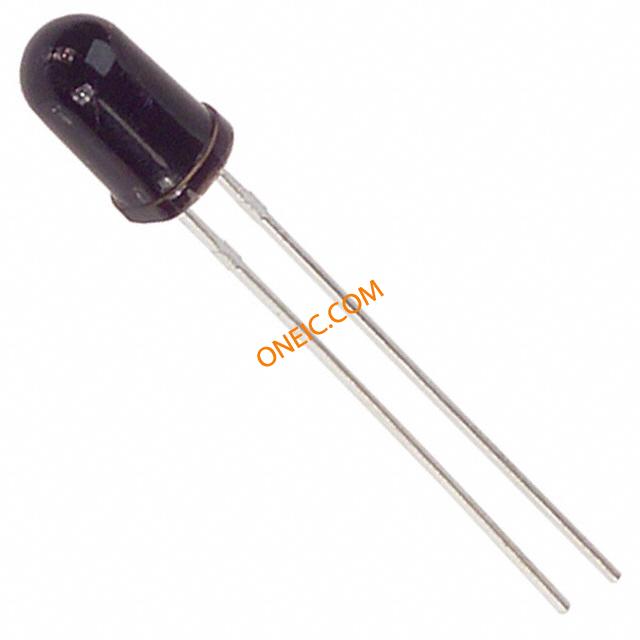

LTR-3208E
| Manufacturer | |
| Description | Phototransistor IR Chip 2-Pin T-1 3/4 Phototransistors Phototransistor PTX 5mm, Filtr PHOTOTRAN NPN 5MM IR DARK PT/IR LTR-3208E PTR TOP VIEW |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Fall Time | 15 us | Wavelength | 940nm |
| Power - Max | 100mW | Filter Order | Visible Cut-off |
| Viewing Angle | Top View | Rise Time (Typ) | 10000(Typ) ns |
| Transistor Type | Phototransistor | Voltage - Supply | 30 V |
| Current - Dark (Max) | 100 nA | Voltage - Input (Min) | 5 V |
| Power Dissipation (Max) | 100 mW | Current - Dark (Id) (Max) | 100nA |
| Current - Collector (Ic) (Max) | 4.5 mA | Current - Collector Cutoff (Max) | 3.6 mA |
| Max Propagation Delay @ V, Max CL | 15000(Typ) ns | ||
Mechanical
| Packaging | Bulk | Lens Style | Domed |
| Orientation | Top View | Lens Diameter | 5 mm |
| Mounting Type | Through Hole | Package / Case | 2T-1 3/4 |
Product Info
| Type | IR Chip | Polarity | NPN |
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Operating Temperature | + 85 C |
