LTP-587G
| Manufacturer | |
| Description | Displays Segmented Module 1DIGIT 17LED Green CA 18-Pin DIP LED Displays & Accessories Green Displays Module 1DIGIT 17LED Green CA 18-Pin DIP LED ALPHANUMERIC 0.5" GREEN CA |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LED Displays & Accessories | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | Standard Package Name | DIP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Display Type | 16-Segment, Alphanumeric | Luminous Flux | 2000 ucd |
| Current - Output | 20mA | Voltage - Supply | 2.1V |
| Wavelength - Peak | 565 nm | Millicandela Rating | 2.2mcd |
| Wavelength - Dominant | 569 nm | Power Dissipation (Max) | 75mW |
| Voltage Regulation - Load | 5 | Current - Reverse Leakage @ Vr | 100 |
| Current - Peak Pulse (10/1000us) | 25 | Voltage - Forward (Vf) (Max) @ If | 2.6 |
Mechanical
| Color | Green | Packaging | Tube |
| Common Pin | Common Anode | Lead Style | Through Hole |
| Package / Case | 18DIP | Height - Overall | 12.7 mm |

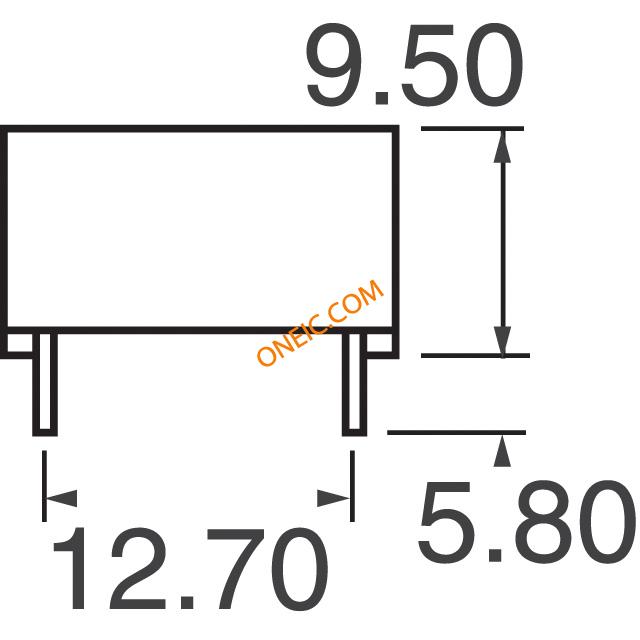

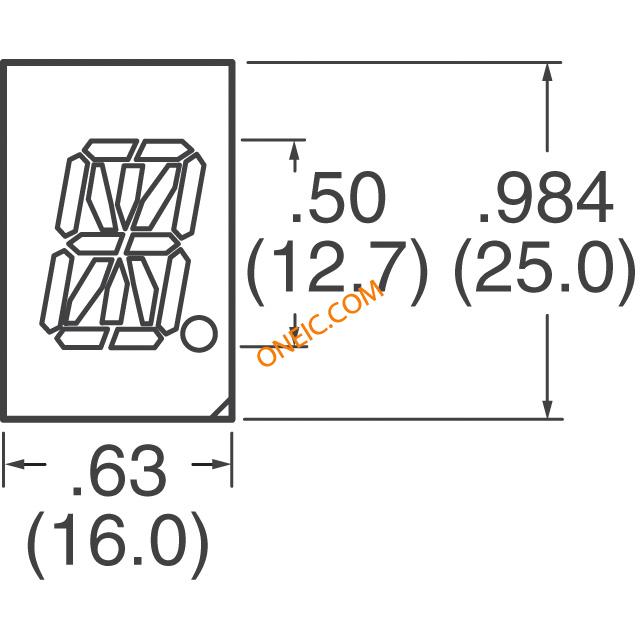

| Package Quantity | DIP | Size / Dimension | 0.984" H x 0.630" W x 0.374" D (25.00mm x 16.00mm x 9.50mm) |
| Number of Positions | 18 | Thickness - Overall | 9.5 mm |
Product Info
| Type | Module | Viewing Area | 8.25 mm |
| Configuration | Common Anode | Number of LEDs | 17 |
| Digit/Alpha Size | 0.50" (12.70mm) | Digits or Characters | 1 |
| Number of Characters | 1 | ||
Environmental
| Operating Temperature | 85 | ||
