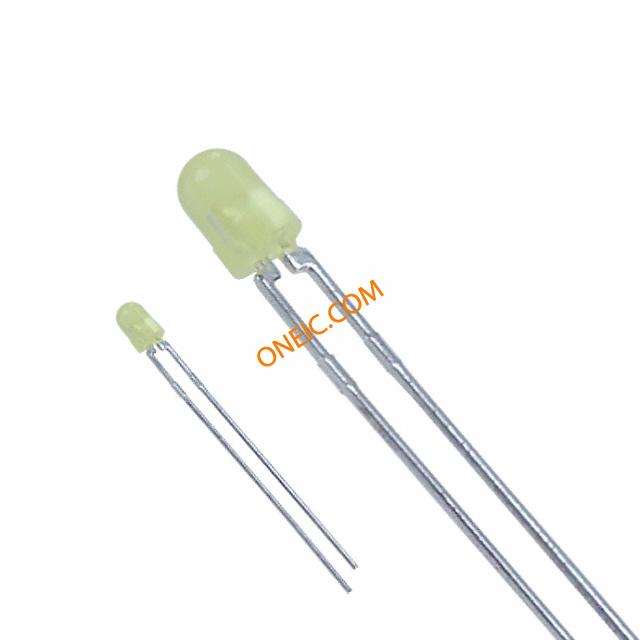

LTL-4251N
| Manufacturer | |
| Description | LED Uni-Color Yellow 585nm 4-Pin Bag Standard LEDs - Through Hole Yellow Diffused LED Uni-Color Yellow 585nm 2-Pin T-1 Bag LED 3MM YELLOW DIFFUSED Lite-On 黄色 (595 nm 主波长) LED , 2.6 V, 60mA, 30 mcd, 60 °视角, 通孔安装 3MM YELLOW DIFFUSED |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard LEDs - Through Hole | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | Standard Package Name | T-1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| LED | 1 | Lamp Type | 黄色 |
| Optic Size | T-1 | Lamp Output | No |
| Luminous Flux | 5.6 mcd | Sensing Angle | 60 ° |
| Viewing Angle | 60 ° | Current - Bias | 10 mA |
| Current - Output | 10mA | Voltage - Supply | 2.1V |
| Flatness (Lambda) | 585 nm | Wavelength - Peak | 585 nm |
| Number of Elements | 1 | LED Forward Current | 20 mA |
| LED Forward Voltage | 2.1 V | Millicandela Rating | 5.6mcd |
| Current Rating (Max) | 10mA | Wavelength - Dominant | 590 nm |
| Power Dissipation (Max) | 60 | Frequency - Self Resonant | 590 nm |
| Current - Peak Pulse (10/1000us) | 20 | MSCP (Mean Spherical Candle Power) | 5.6mcd |
| Voltage - Gate Trigger (Vgt) (Max) | 5 | ||
Mechanical
| Color | Yellow | Height | 4.45mm |
| Packaging | Bulk | Lead Style | Through Hole |
| Lens Color | Diffused | Lens Style | Circular |
| Lens Diameter | 3 mm | Mounting Type | Through Hole |
| Mounting Style | Top Mount | Package / Case | Radial |
| Lens Style/Size | Round with Domed Top, 3mm, T-1 | Insulation Color | DIFFUSED |

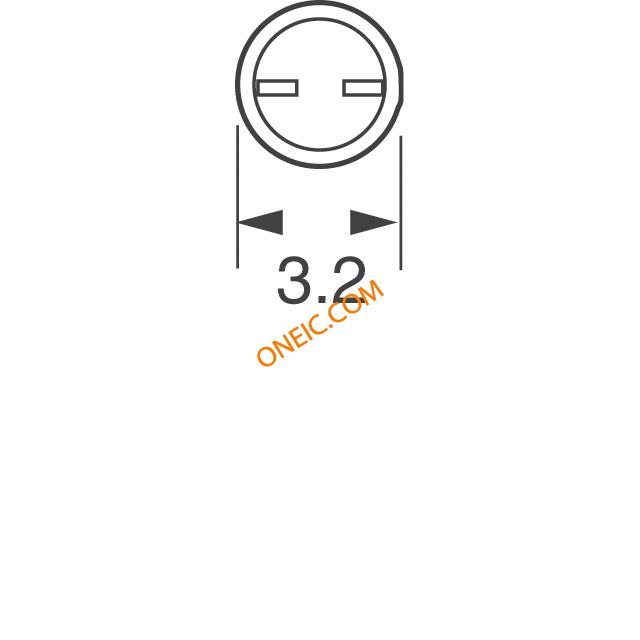

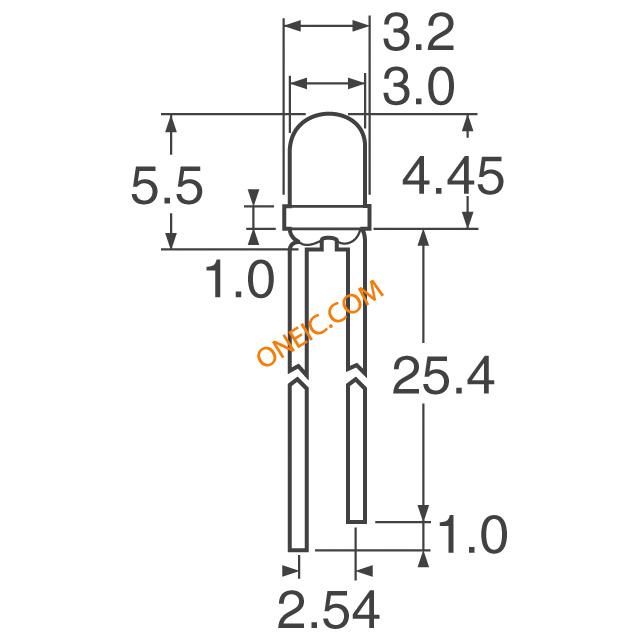

| Package Quantity | T-1 | Size / Dimension | 3.2 (Dia.) x 4.45mm |
| Lens Transparency | 漫射 | Diameter - Outside | 3.2 |
| Illumination Color | Yellow | Number of Contacts | 2 |
| Number of Positions | 4 | Shell Size - Insert | 4.45 |
Product Info
| Type | Uni-Color | Lens Type | Colored Diffused |
| Optic Shape | 圆形 | Number of LEDs | 1 |
| Output Configuration | Through Hole | Printed Circuit Board | 2 |
Environmental
| Operating Temperature | + 100 C | Luminous Flux @ Current/Temperature | 5.6 mcd |
