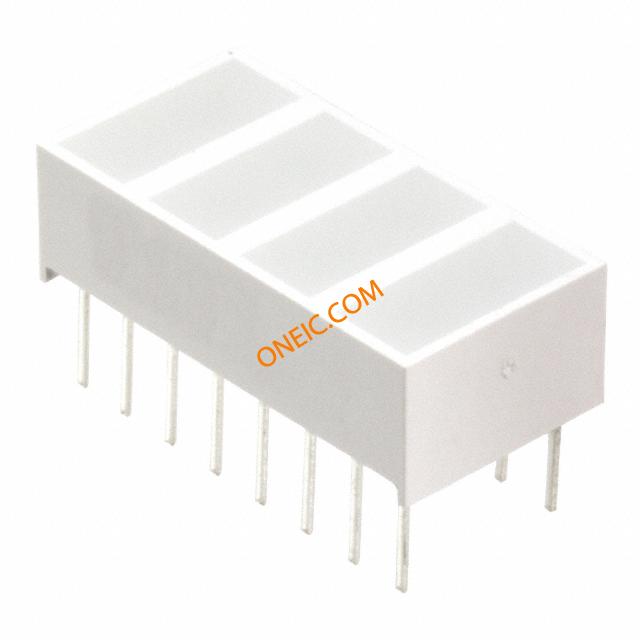

LTL-2620HR
| Manufacturer | |
| Description | LED Uni-Color Red 635nm 16-Pin DIP LED Bars and Arrays 4 BAR Red LED LIGHT BAR RECT 1X4 HE RED |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | LED Light Arrays | Product Category | LED Bars and Arrays |
| Standard Package | Rail / Tube | Factory Pack Quantity | 25 |
| Standard Package Name | DIP | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 100mA | Lamp Output | No |
| Luminous Flux | 4.2 mcd | Power - Rated | 75 mW |
| Voltage Rating | 2V | Wavelength - Peak | 635 nm |
| LED Forward Current | 20 mA | LED Forward Voltage | 2 V |
| Millicandela Rating | 4.2mcd | Wavelength - Dominant | 623 nm |
| Power Dissipation (Max) | 75 | Current - Peak Pulse (10/1000us) | 25 |
| Voltage - Forward (Vf) (Max) @ If | 2.6 | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical
| Color | Red | Packaging | Tube |
| Lead Style | Through Hole | Lens Style | Rectangular |
| Lens Diameter | 8.89x3.81x6.15 | Mounting Type | Through Hole |
| Mounting Style | Top Mount | Package / Case | 16DIP |
| Lens Style/Size | Rectangle with Flat Top, 3.81mm x 8.89mm | Material - Core | GaAsP |
| Length - Overall | 20.16 mm | Package Quantity | DIP |
| Illumination Color | Red | Number of Positions | 16 |
Product Info
| Type | Uni-Color | Lens Type | Diffused |
| Configuration | Bar - 4 Wide, DIP | Number of LEDs | 8 |
Environmental
| Operating Temperature | 85 | Luminous Flux @ Current/Temperature | 4200 ucd |
