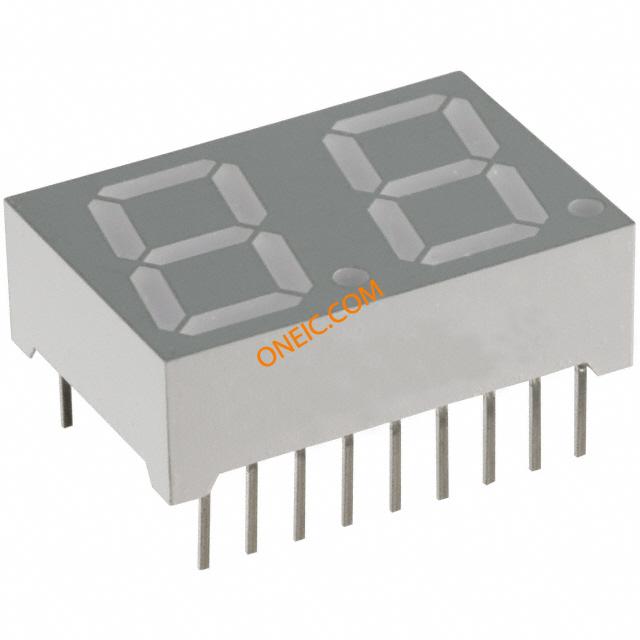

LTD-5521AB
| Manufacturer | |
| Description | Displays Segmented Panel 2DIGIT 16LED Blue CA 18-Pin DIP LED Displays & Accessories 2 Digit, Blue LED 7-SEGMENT .56" 2DGT BLUE CA |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LED Displays & Accessories | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Display Type | 7-Segment | Luminous Flux | 4300 ucd |
| Current - Output | 20mA | Voltage - Supply | 3.8V |
| Wavelength - Peak | 428 nm | Millicandela Rating | 4.3mcd |
| Current Rating (Max) | 20mA | Wavelength - Dominant | 466 nm |
| Power Dissipation (Max) | 95mW | ||
Mechanical

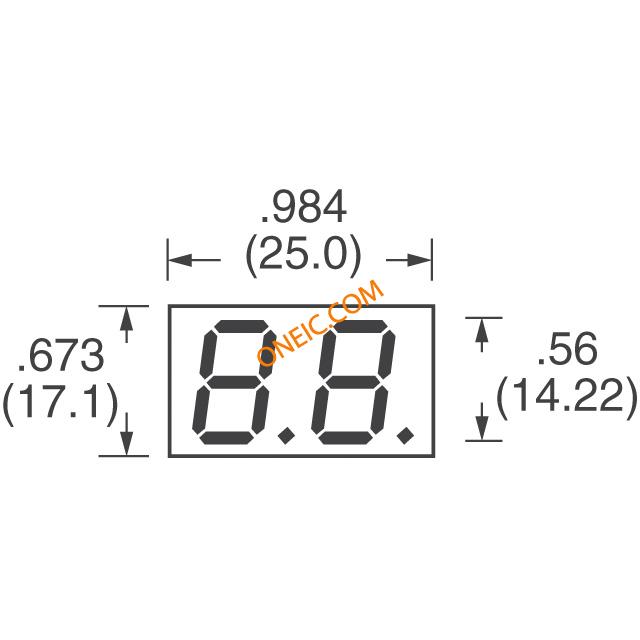

| Size | 0.673" H x 0.984" W x 0.315" D (17.10mm x 25.00mm x 8.00mm) | Color | Blue |
| Packaging | Tube | Common Pin | Common Anode |
| 1st Connector | Common Anode | Package / Case | 18DIP |
| Height - Overall | 14.22 mm | Size / Dimension | 0.673" H x 0.984" W x 0.315" D (17.10mm x 25.00mm x 8.00mm) |
| Thickness - Overall | 8 mm | ||
Product Info
| Type | Panel | Viewing Area | 7.9 mm |
| Character Size | 2 | Digit/Alpha Size | 0.56" (14.22mm) |
| Digits or Characters | 0.56" (14.22mm) | Number of Characters | 2 |
