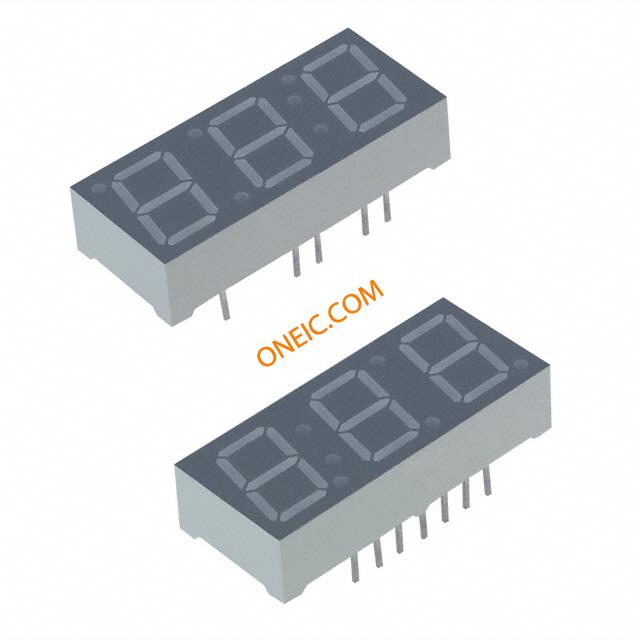

LTC-4724JR
| Manufacturer | |
| Description | Displays Segmented Panel 3DIGIT 27LED Sup. Red CC 15-Pin DIP LED Displays & Accessories 3 Digit, Red Low Current Displays Panel 3DIGIT 27LED Sup. Red CC 12-Pin DIP LED 7-SEG .4" 3DGT SUPER RED CC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LED Displays & Accessories | Standard Package | Rail / Tube |
| Factory Pack Quantity | 17 | Standard Package Name | DIP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Wavelength | 631 nm | Display Type | 7 Segment |
| Luminous Flux | 650 ucd | Current - Output | 20mA |
| Voltage - Supply | 2 V | Wavelength - Peak | 639 nm |
| Millicandela Rating | 0.65mcd | Current Rating (Max) | 20mA |
| Wavelength - Dominant | 631 nm | Power - Average Forward | 70 mW |
| Power Dissipation (Max) | 70mW | Voltage Regulation - Load | 5 |
| Current - Reverse Leakage @ Vr | 100 | Current - Average Rectified (Io) | 25 mA |
| Current - Peak Pulse (10/1000us) | 25 | Voltage - Forward (Vf) (Max) @ If | 2.6 |
| MSCP (Mean Spherical Candle Power) | 0.65mcd | ||
Mechanical

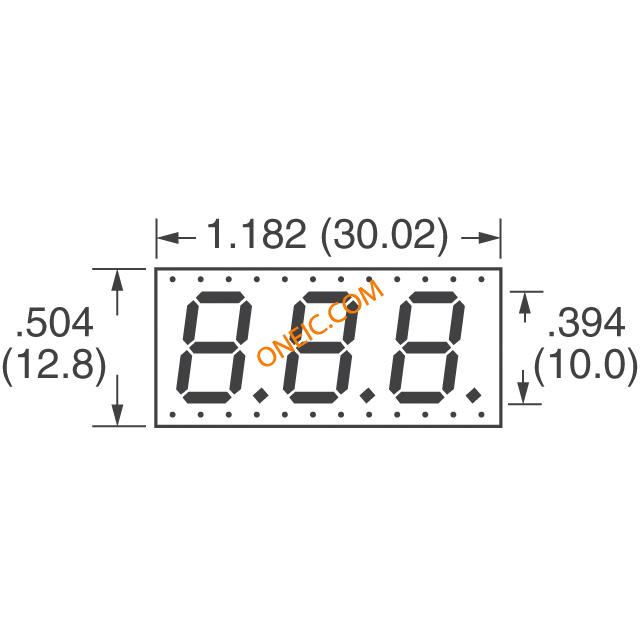

| Size | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) | Color | Sup. Red |
| Width | 12.8 | Packaging | Tube |
| Common Pin | Common Cathode | Lead Style | Through Hole |
| 1st Connector | Common Cathode | Mounting Type | Through Hole |
| Package / Case | 15DIP | Height - Overall | 10 mm |
| Length - Overall | 30.02 | Package Quantity | DIP |
| Size / Dimension | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) | Illumination Color | Red |
| Number of Positions | 12 | Shell Size - Insert | 7 |
| Thickness - Overall | 7 mm | ||
Product Info
| Type | Panel | Viewing Area | 6 mm |
| Configuration | Common Cathode | Character Size | 10 mm |
| Number of LEDs | 27 | Digit/Alpha Size | 0.39" (10.00mm) |
| Digits or Characters | 3 | Number of Characters | 3 |
| Printed Circuit Board | 12 | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 650 ucd |
