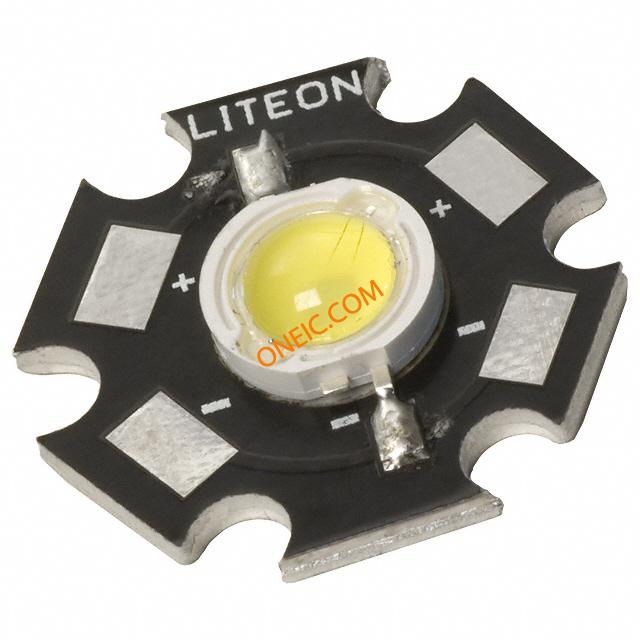

LOPL-E011WA
| Manufacturer | |
| Description | LED Uni-Color White 2-Pin SMD Tray High Power LEDs - White 1W STAR WHITE 5500K LED 1W STAR MCPCB WHITE 5500K |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 160-1751 | Product Category | High Power LEDs - White |
| Standard Package | Bulk | Factory Pack Quantity | 510 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 3.8V | Wavelength | 5500K |
| Lamp Output | Yes | Luminous Flux | 45 lm |
| Viewing Angle | 110 ° | Current - Output | 350mA |
| Driver Circuitry | Yes | LED Forward Current | 350 mA |
| LED Forward Voltage | 3.8 V | Current Rating (Max) | 350mA |
| Power Dissipation (Max) | 1500 | Current - Peak Pulse (10/1000us) | 350 |
| Voltage - Gate Trigger (Vgt) (Max) | 5 | ||
Mechanical
| Color | White | Height | 3.15 mm |
| Length | 7.4 mm | Packaging | Bulk |
| Lamp Color | x=0.33/y=0.32 | Lead Style | No Lead |
| Lens Style | Circular | Mounting Style | Top Mount |
| Package / Case | 2SMD | Connector Usage | No |
| Material - Core | InGaN | Package Quantity | SMD |
| Illumination Color | Cool White | Number of Positions | 2 |
| CRI (Color Rendering Index) | 85 | ||
Product Info
| Type | Uni-Color | Configuration | Star |
| Number of LEDs | 1 | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 80 C |
| Luminous Flux @ Current/Temperature | 45 lm | ||
Documents & Media
PDF Document
