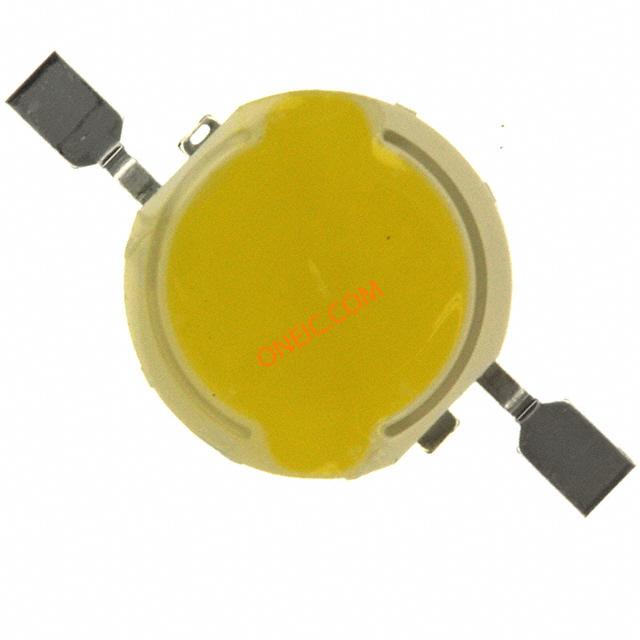

LOPL-E001M
| Manufacturer | |
| Description | LED Uni-Color White 2-Pin SMD T/R High Power LEDs - White 1 Watt White 3800K LED 1W NEUTRAL WHITE 3800K SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 160-1779-2 | Product Category | High Power LEDs - White |
| Standard Package | Tape & Reel | Factory Pack Quantity | 500 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Lamp Output | Yes | Luminous Flux | 28 lm |
| Viewing Angle | 110 deg | Current - Output | 350mA |
| Voltage - Supply | 3.8V | LED Forward Current | 350 mA |
| LED Forward Voltage | 3.8 V | Current Rating (Max) | 350mA |
| Power Dissipation (Max) | 1500 | Lumens/Watt @ Current - Test | 21 lm/W |
| Flux @ 25degC, Current - Test | 28 lm (Typ) | Current - Peak Pulse (10/1000us) | 350 |
| Voltage - Gate Trigger (Vgt) (Max) | 5 | ||
Mechanical
| Color | White | Height | 1.8 mm |
| Length | 7.4 mm | Packaging | Reel |
| Lamp Color | x=0.405/y=0.391 | Lens Style | Circular |
| Mounting Style | Top Mount | Package / Case | 2SMD |
| Material - Core | InGaN | Package Quantity | SMD |
| Illumination Color | Neutral White | Number of Positions | 2 |
| CRI (Color Rendering Index) | 70 | ||
Product Info
| Type | Uni-Color | Series | LOPL |
| CCT (K) | 3393K | Number of LEDs | 1 |
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 80 C |
| Thermal Resistance of Package | 15°C/W | Luminous Flux @ Current/Temperature | 28 lm |
