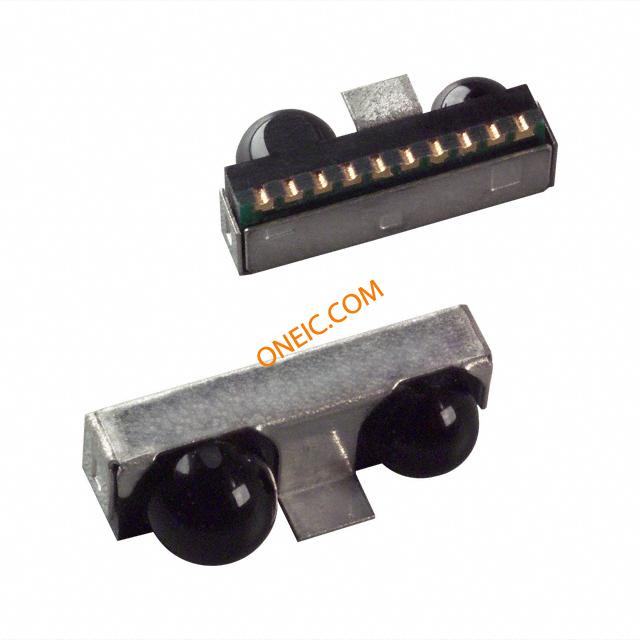

HSDL-3612-007
| Manufacturer | |
| Description | Infrared Transceivers IR Transceiver 115.2Kb/s IRDA MODULE 115.2KBS 10-SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 516-1275-2 | Product Category | Infrared Transceivers |
| Standard Package | 400 | Factory Pack Quantity | 400 |
Compliance
| RoHS | RoHS Compliant | Standards | IrPHY 1.0 |
Electrical
| Data Rate | 115.2 Kbit/s | Wavelength | 875 nm, 880 nm |
| Sensing Angle | 30 deg to 60 deg | Rise Time (Typ) | 40 ns, 25 ns |
| Voltage - Supply | 2.7 V to 5.25 V | Link Range, Low Power | 1m |
| Idle Current, Typ @ 25degC | 2.5mA | Radiant Intensity (Ie) Min @ If | 120 mW/sr |
| Current - Peak Pulse (10/1000us) | 165 mA | Max Propagation Delay @ V, Max CL | 40 ns, 25 ns |
| Distance - Control To Sensor (Max) | 1.5 m | ||
Mechanical
| Size | 12.2mm x 5.1mm x 4.0mm | Packaging | Reel |
| Orientation | Side View | Size / Dimension | 12.2 mm x 5.1 mm x 4 mm |
Product Info
| Series | * | Shutdown | * |
| Other Specifications | 4 us, 1.6 us | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 70 C |
Documents & Media
PDF Document
