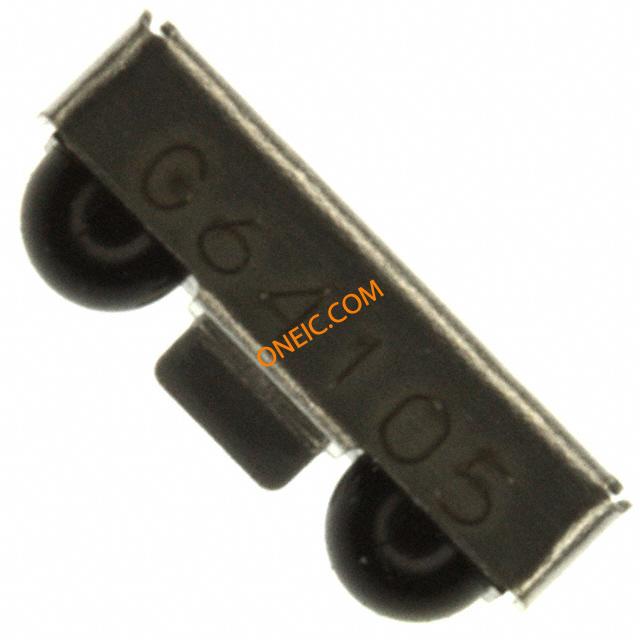

HSDL-3220-021
| Manufacturer | |
| Description | Infrared Transceivers IR Transceiver TRANSCEIVER IRDA 4.0MBIT 8-SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 516-1701-1 | Product Category | Infrared Transceivers |
| Standard Package | 2,500 | Factory Pack Quantity | 2500 |
Compliance
| RoHS | RoHS Compliant | Standards | IrPHY 1.4 |
Electrical
| Data Rate | 4 Mbit/s | Wavelength | 875 nm, 880 nm |
| Sensing Angle | 30 deg to 60 deg | Rise Time (Typ) | 60 ns, 600 ns |
| Voltage - Supply | 2.7 V to 3.6 V | Link Range, Low Power | 1m |
| Idle Current, Typ @ 25degC | 1.8 mA | Radiant Intensity (Ie) Min @ If | 45 mW/sr |
| Current - Peak Pulse (10/1000us) | 50 mA | Max Propagation Delay @ V, Max CL | 60 ns, 600 ns |
| Distance - Control To Sensor (Max) | 50 cm | ||
Mechanical
| Size | 8.0mm x 3.0mm x 2.5mm | Packaging | Reel |
| Orientation | Side View | Size / Dimension | 8 mm x 3 mm x 2.5 mm |
Product Info
| Series | * | Shutdown | * |
| Other Specifications | 4 us, 1.6 us | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 70 C |
